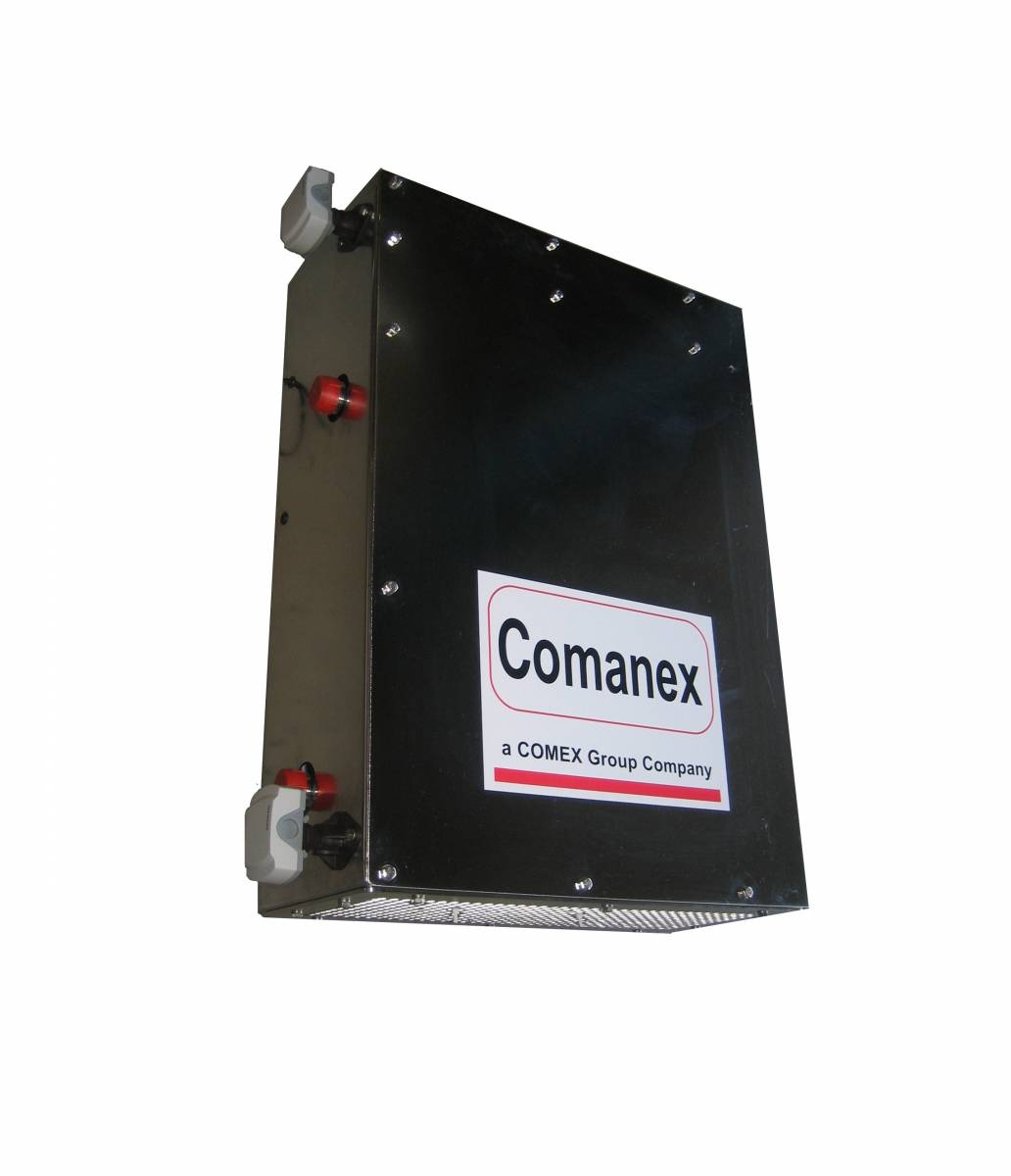

Habitat Unit HU1
HU1 is designed to condition 6-man chambers up to 20 m3 at 30 bar.
HU1 is divided into 2 compartments:
• Heater/Cooler: The exchanger may be supplied with hot or chilled water depending on external conditions.
• Fan Compartment: 2 fans create the gas flow through HU1, thus around the chamber.
Two sensors measure the chamber atmosphere and the blowing temperature.
Overall length: 745 mm
Overall width: 520 mm
Overall height: 240 mm
Weight: 50 kg
Input power: 24 VDC 2 x 500 mA
Power consumption at one atmosphere: 2 x 12 W
Maximum gas fl ow at one atmosphere: 300 m3/h
Maximum working pressure: 300 msw
HU1 is designed to enter Ø 600 mm doors. It is made of stainless steel.
When associated with COMANEX ECU REGULATION RACK, Habitat Unit HU1 is able to regulate, under steady conditions, the temperature within ± 0.5°C.
Go to HU2 Habitat Unit
Go to HU2 Habitat Unit
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
Habitat Unit HU1 |
160 01429 |
|

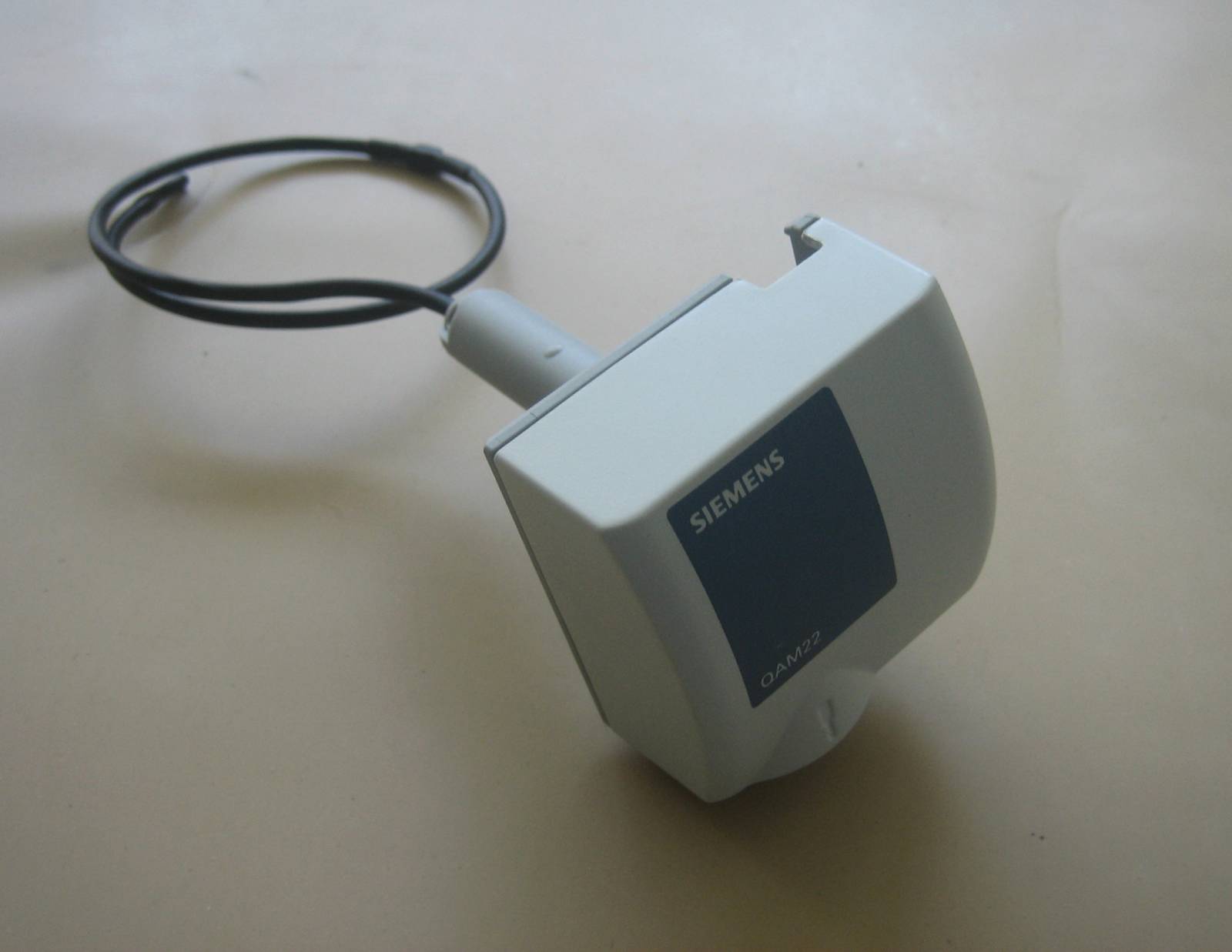

Temperature sensor |
100 01826 |
|

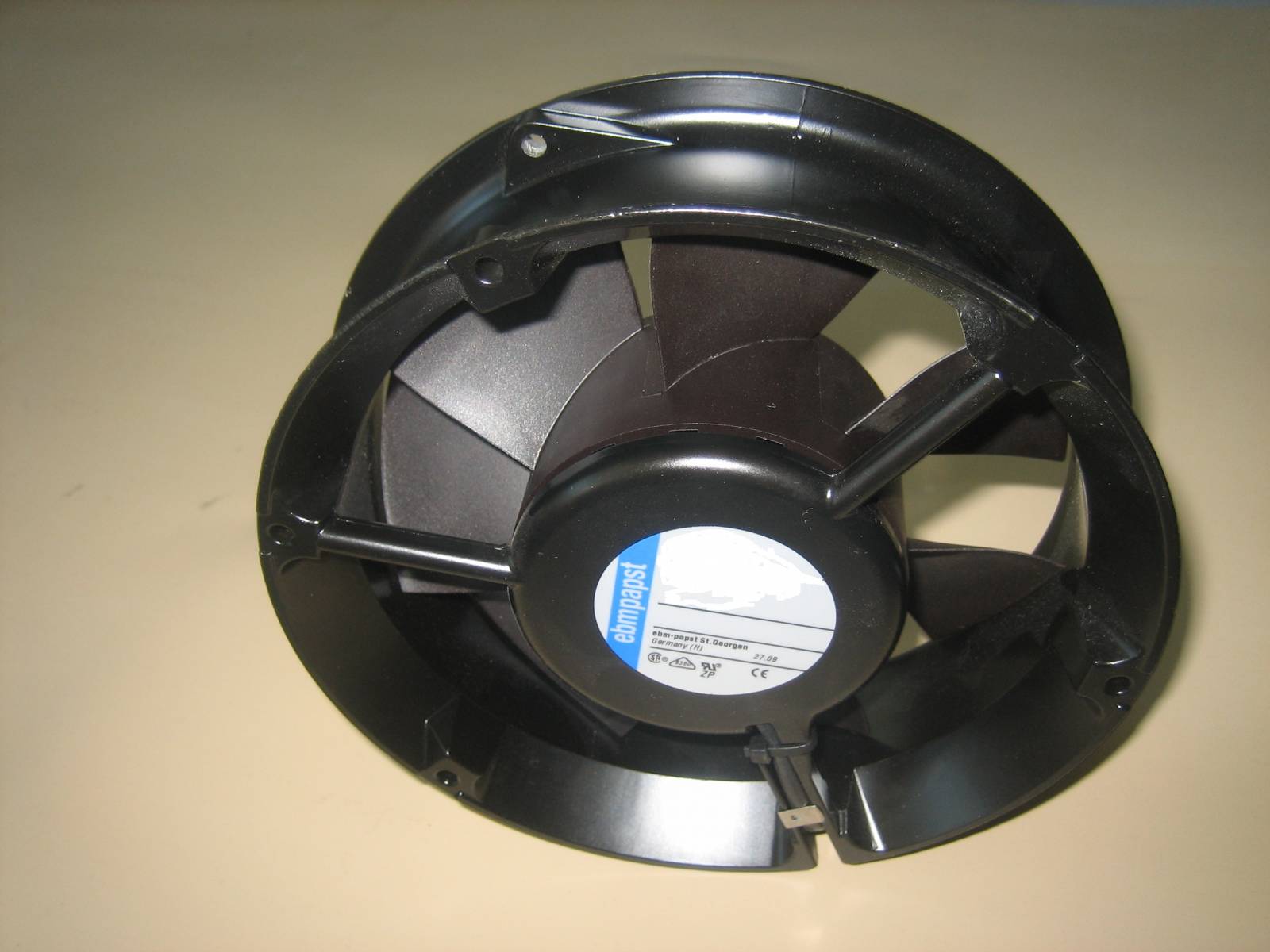

Electronic fan (inherently safe) |
070 07528 |
