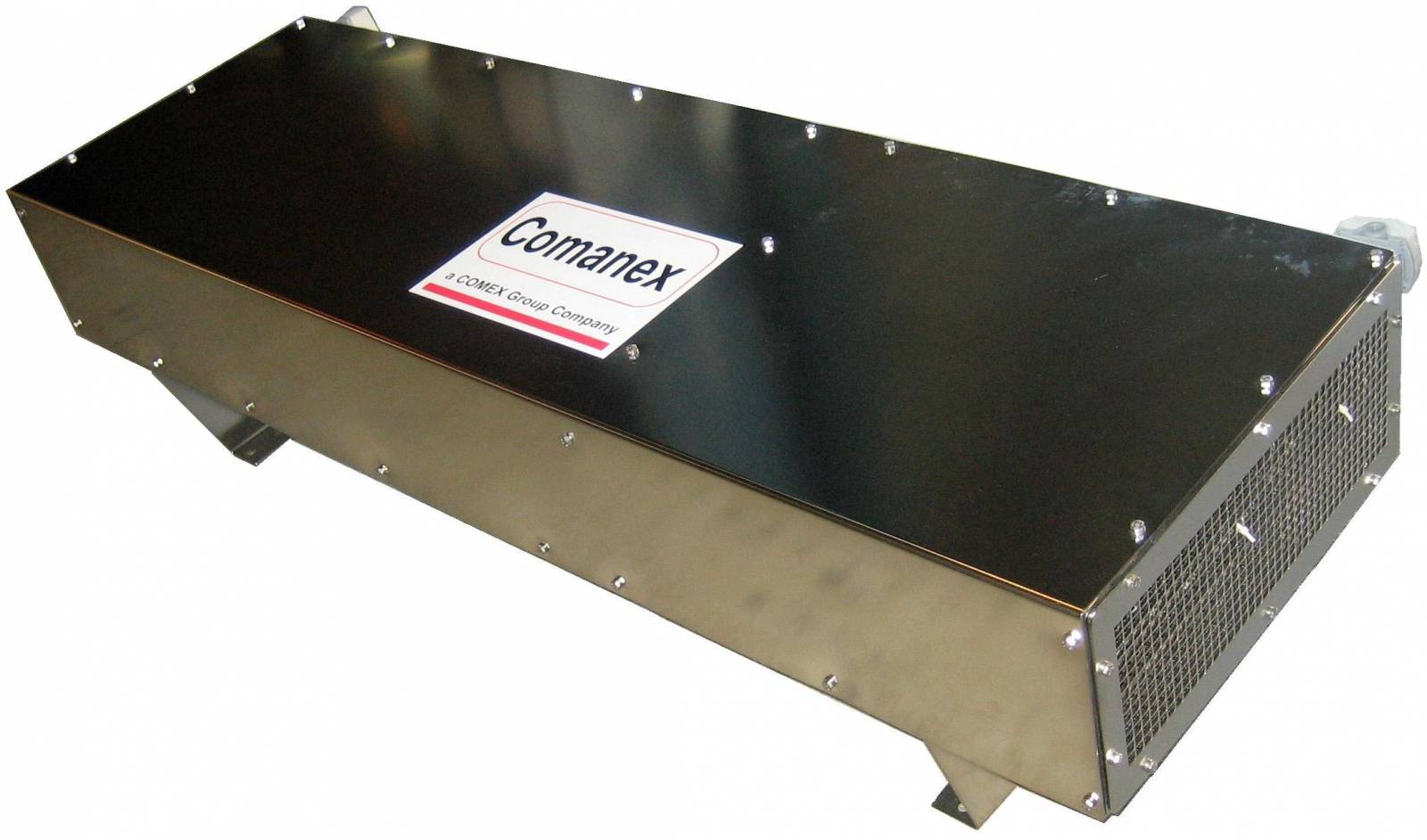

Habitat Unit HU3
HU3 is designed to control the relative humidity and the temperature of hyperbaric chambers up to 30 bar.
HU3 is designed to meet the most recent standards regarding humidity reduction in chambers.
Operating at 50% relative humidity, it can accommodate up to 7 divers.
Considering that comfort relative humidity is around 60%, HU3 can easily accommodate up to 10 divers.
HU3 is divided into 3 compartments:
• Cooler: 2 exchangers are supplied with chilled water to reduce the gas temperature and reach the dew
point. The condensation water is evacuated by gravity through a penetrator.
• Fan Compartment: 2 fans create the gas fl ow through HU3, thus around the chamber.
• Heater: The exchanger is supplied with hot water to reheat the gas coming from the coolers before it is
sent back to the chamber.
Two sensors measure the chamber atmosphere and the blowing temperature.
Overall length: 1665 mm
Overall width: 520 mm
Overall height: 240 mm
Weight: 110 kg
Input power: 24 VDC 2 x 500 mA
Power consumption at one atmosphere: 2 x 12 W
Maximum gas fl ow at one atmosphere: 300 m3/h
Maximum working pressure: 300 msw
HU3 is designed to enter Ø 600 mm doors and it is made of stainless steel.
When associated with COMANEX ECU REGULATION RACK, Habitat Unit HU3 is able to regulate, under steady conditions, the temperature within ± 0.5°C and the relative humidity within ± 5%.
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
Habitat Unit HU3 |
160 01426 |
|

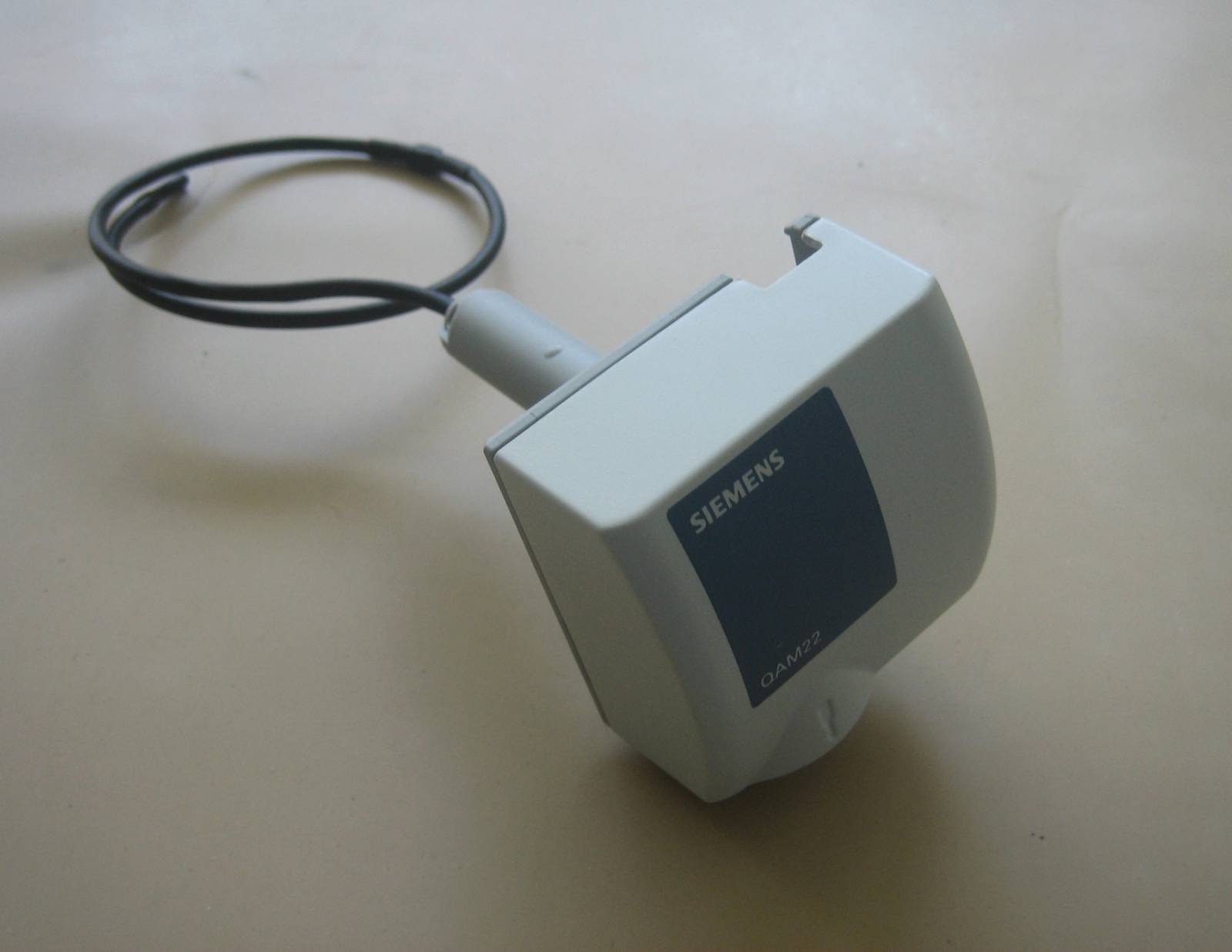

Temperature sensor |
100 01826 |
|

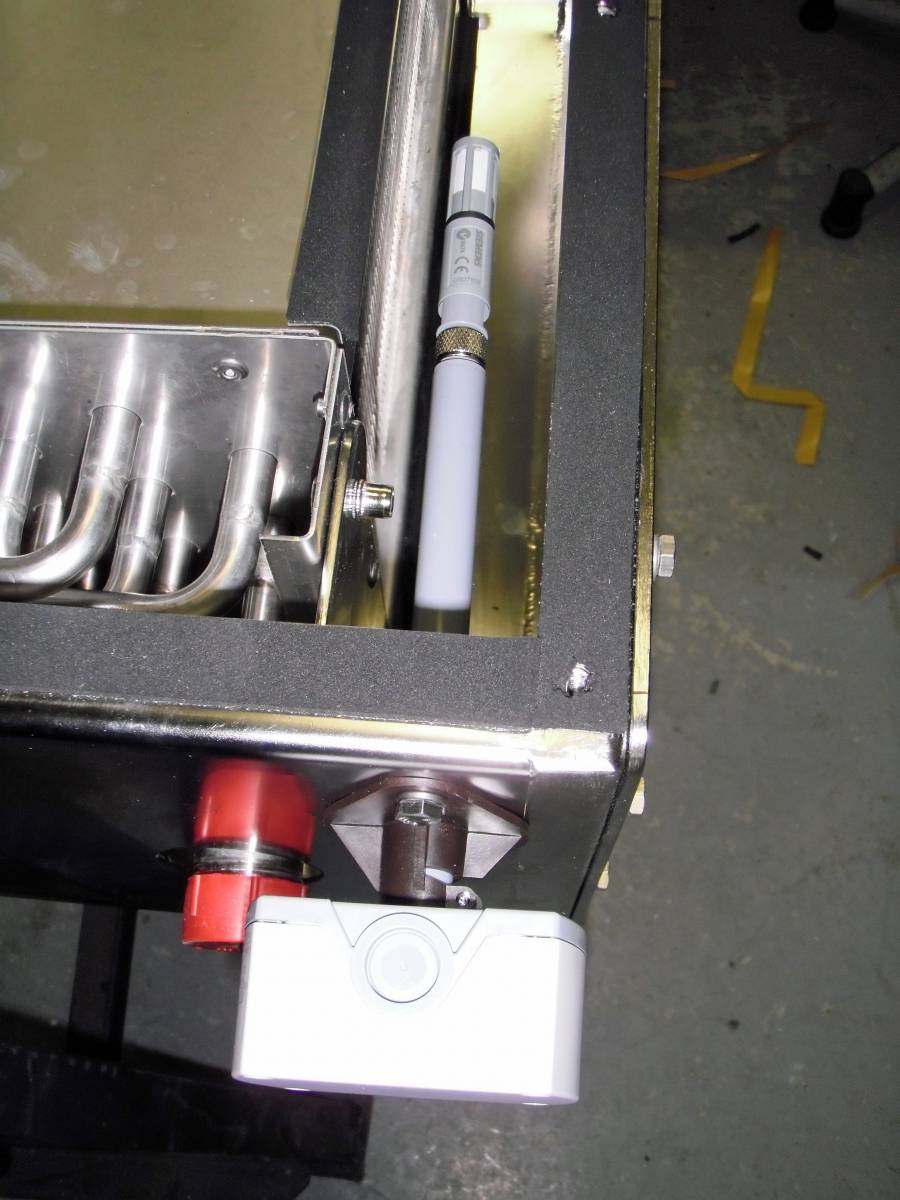

Temperature & Hygrometry sensor |
100 08234 |
|

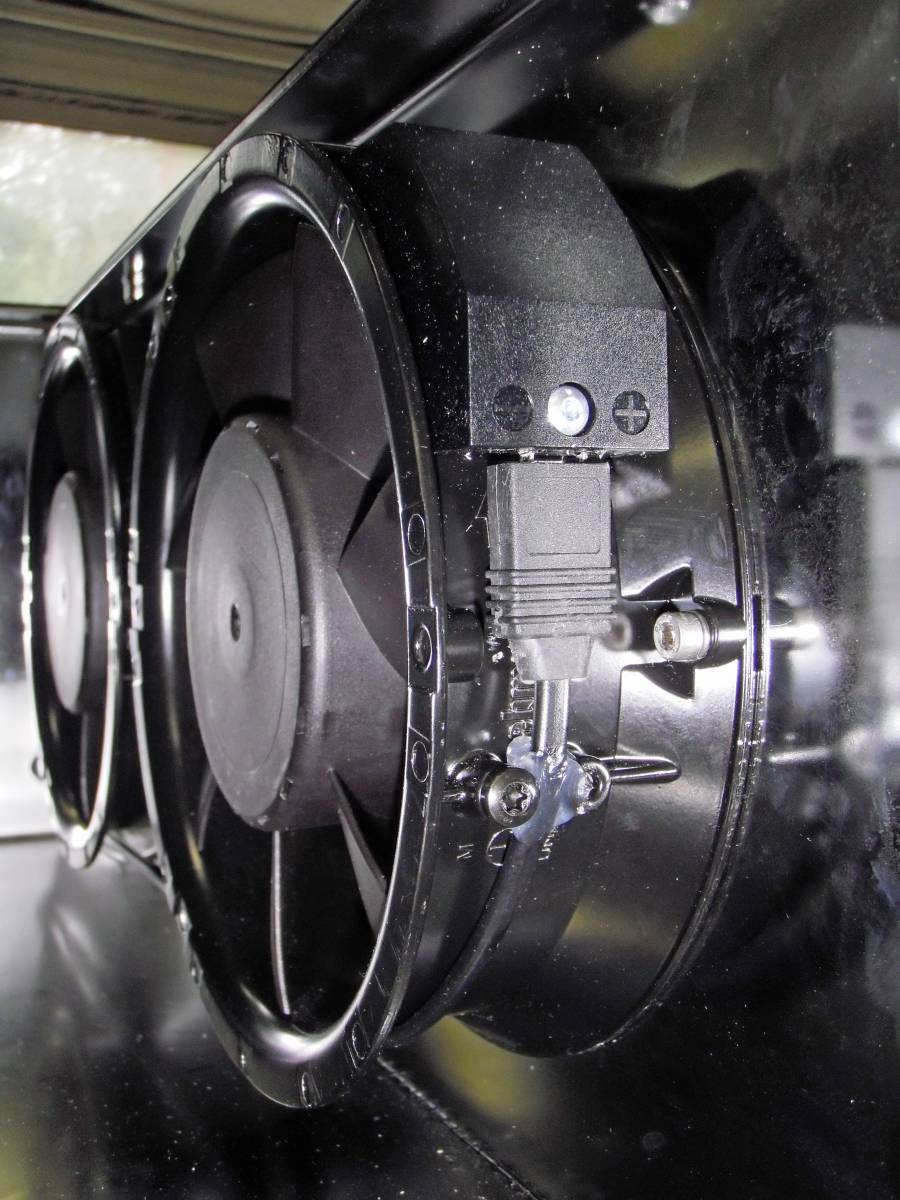

Electronic fan (inherently safe) |
070 07528 |
