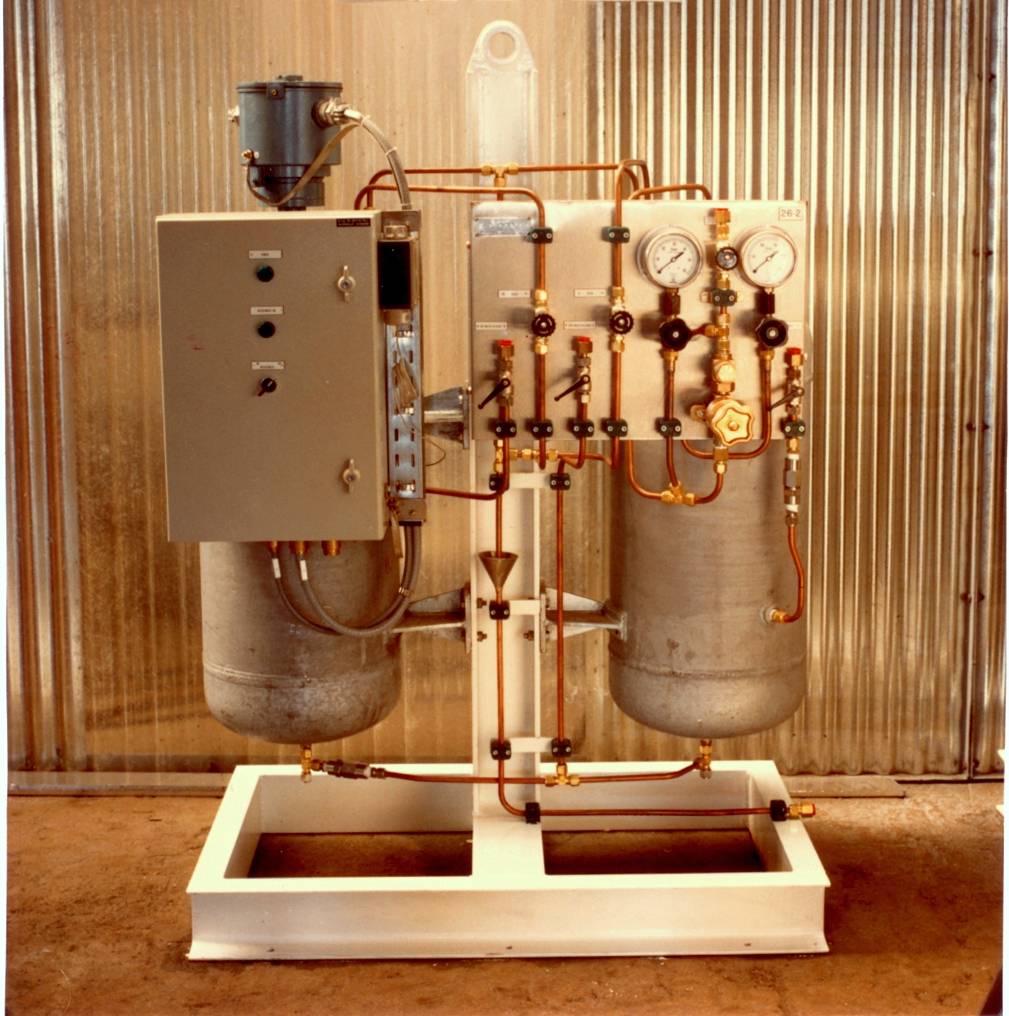

Pressurized Tank Sanitary System
The system supplies decompression chambers with hot water and cold water.
2 storage tanks of 200 litres each are pressurized a few bars above the chamber pressure through pilot operated pressure reducers.
The valves inside the chambers are operated by the divers. When a tank is empty, it is isolated, refilled and pressurized for another run.
Painted square beam structure:
Overall width : 1150 mm
Overall depth : 700 mm
Overall height : 1710 mm
Weight : 430 kg (empty)
