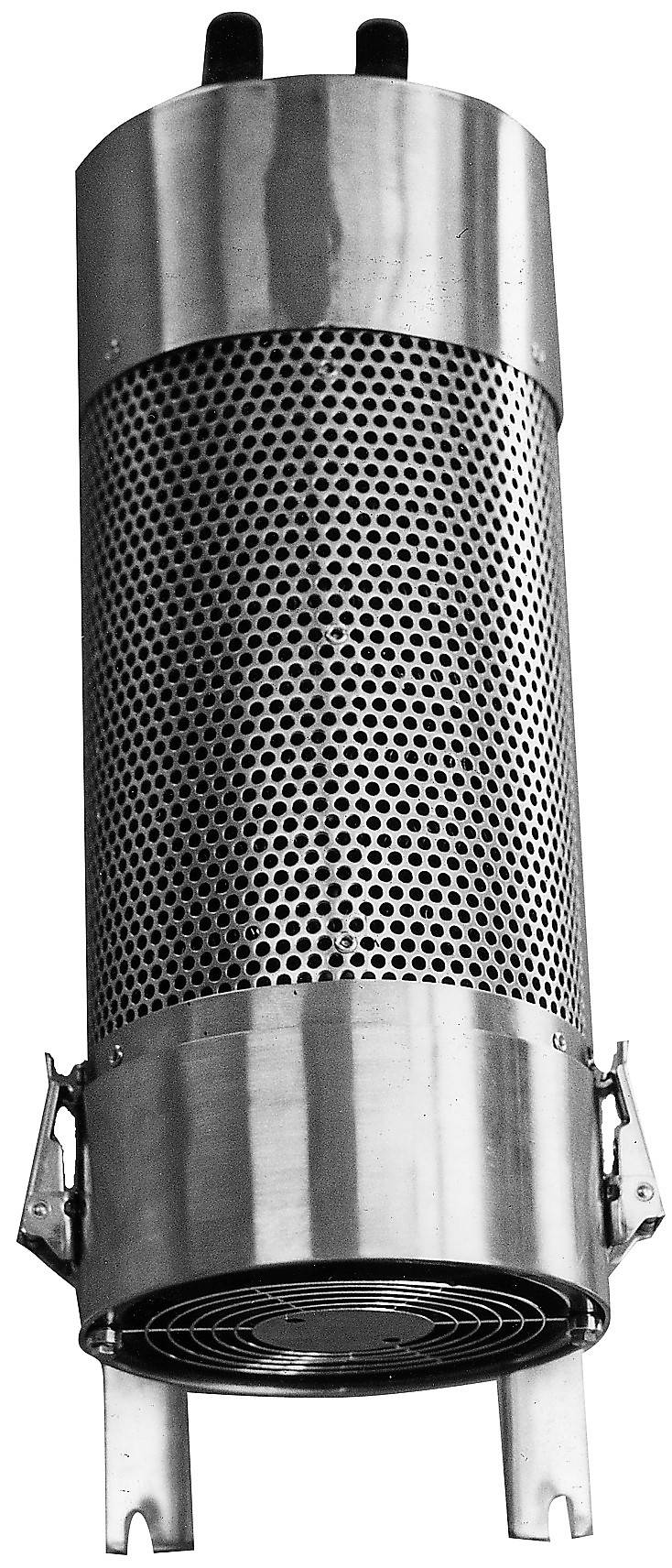

SDC/DDC Heater
The SDC/DDC heater is designed for two purposes:
• Diving bell: supplied with hot water, the unit is able to maintain the temperature in bells up to 6 m3.
• Decompression chambers: the unit may be supplied with hot or chilled water depending on external conditions.
It may be used as an additional or emergency heater.
- Overall height (without supports): 624 mm
- Overall diameter: 218 mm
- Weight: 14 kg
- Input power: 24 VDC - 500 mA
- Power consumption: 12 W
- Gas flow at one atmosphere: 300 m3/h
- Maximum working pressure: 300 msw
Electronic protection against reverse polarity, locked rotor and overloading (inherently safe).
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
Bell heater (SDC/DDC) |
070 00923 |
|

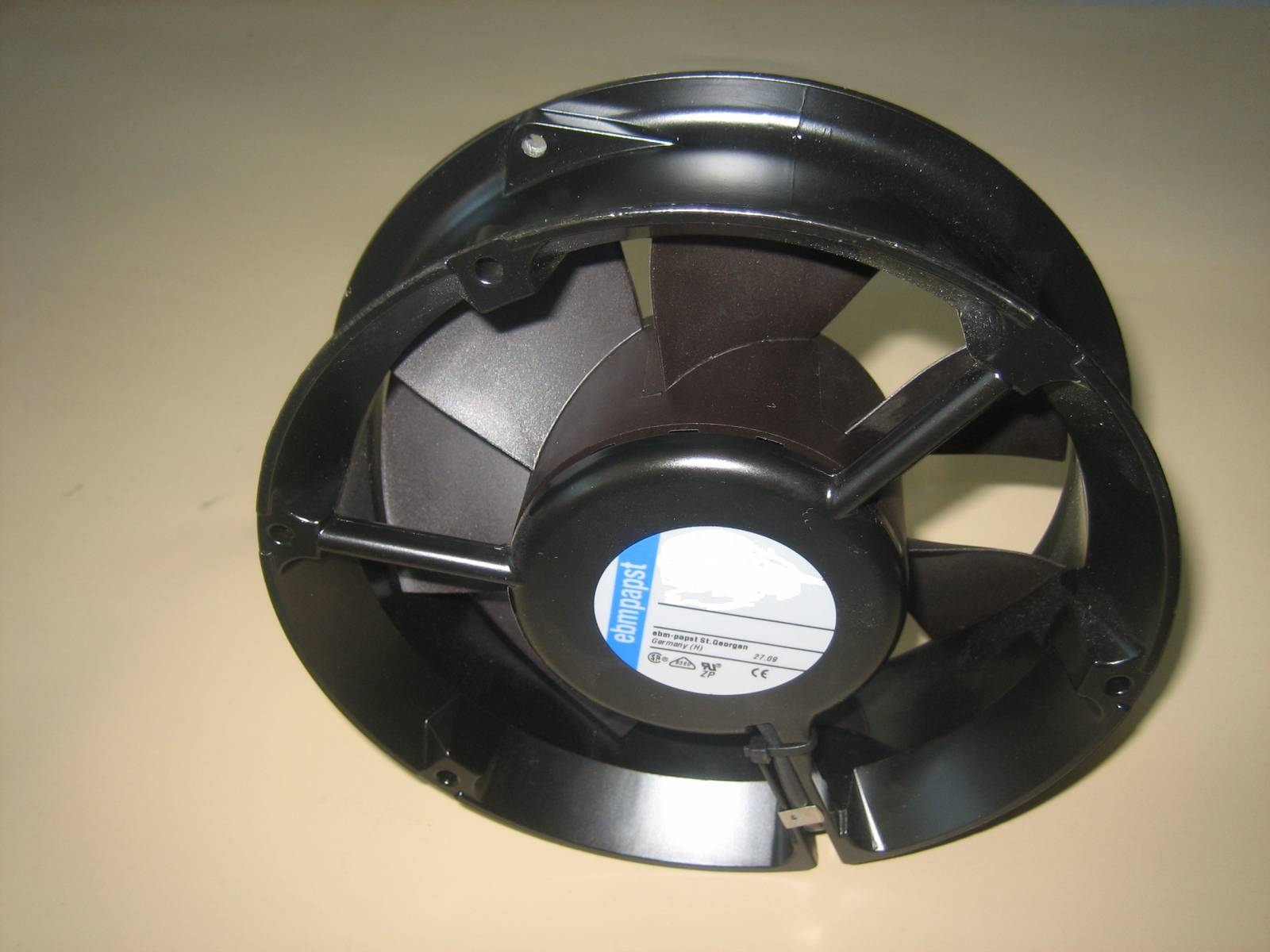

Electric fan (inherently safe) |
070 07528 |
Associated products
The CO2 scrubber is designed to eliminate the carbon dioxyde produced by the occupants of an enclosed area.
Depending on the volume of the chamber and the available space, two types of CO2 scrubber are available.
CO2 Scrubber single basket ref. 070 04174
Overall dimensions (without support):...
More details
