Galvanic O2 Analyser 0-100% - NEW RANGE

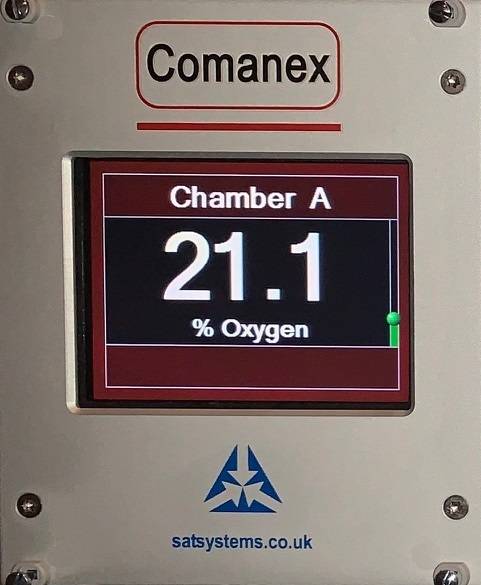

The new range Galvanic O2 Analyser is a touch screen instrument, for use in the commercial diving and medical hyperbaric industries.

The analyser is conformant with EU EMC directives and certified for use in heavy industrial environments.

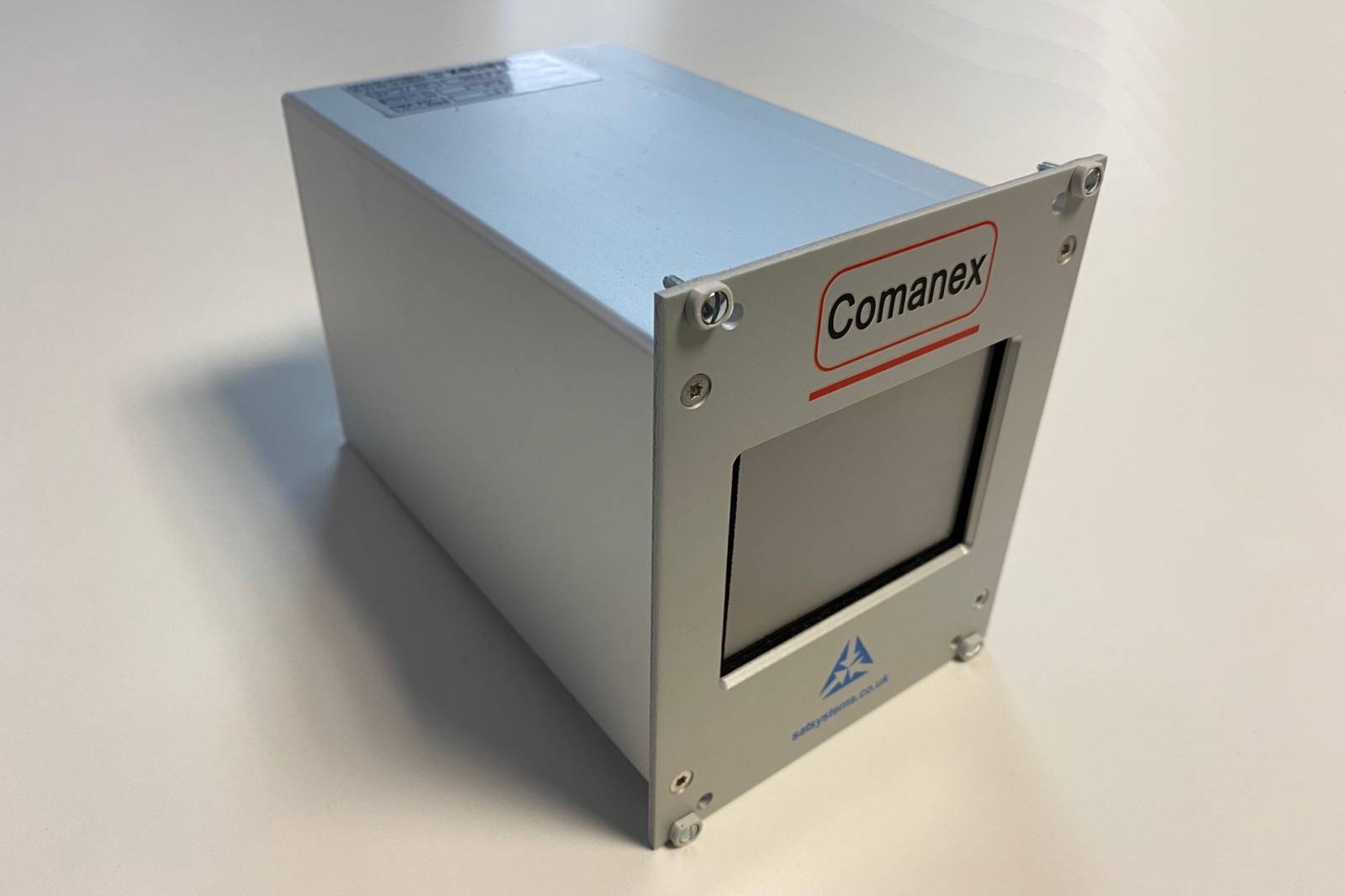

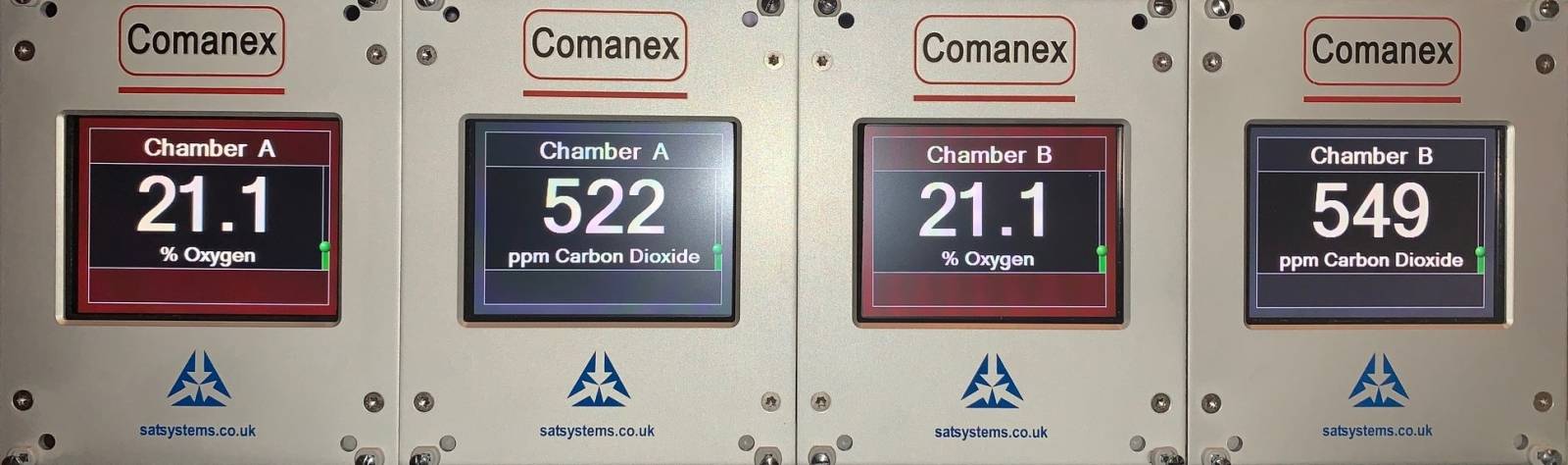

The analyser is 3U one quarter of 19'' rack (same as the old generation) and may also be panel mounted.
No gas flowmeter is required as the analyser features a built in sample flow controller and an electronic flow meter with flow failure alarm.

The sensor generates a millivolt output relative to the partial pressure oxygen concentration in the sample.
The sensor has a measurement range of 0–100% oxygen, accuracy of ±0.5%, response time of less than 14 seconds, and lifetime of up to 500.000 %hours.
The analyser includes an internal barometer to automatically compensate for variations in readings caused by atmospheric pressure changes.

Each instrument has an Ethernet port for connecting to external data logging systems, an isolated 4-20mA output for connecting to legacy chart recorders, and a relay for indicating alarm state.

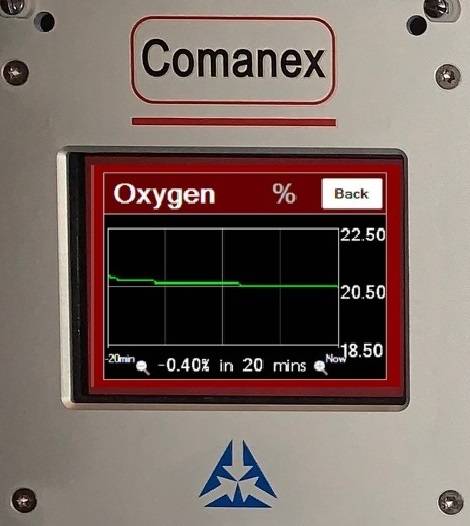

The Analyser has a built in internal storage which records the readings and operator inputs to provide a twelve month history of operation.

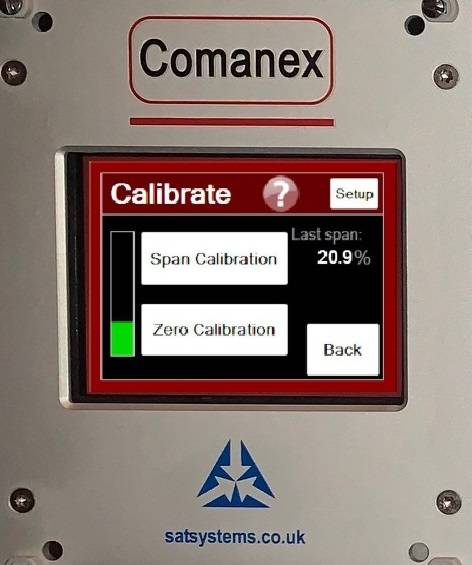

New range Analysers are fully configurable from their touch screen user interface.
Important settings are password protected to prevent unauthorised adjustment.
Contact-us

DESIGNATION

ELECTRIC SUPPLY

COMANEX REF.

Galvanic O2 Analyser 0-100%

100-240 VAC 50/60Hz

100 11719

Galvanic O2 Analyser 0-100%

10-36 VDC

100 11776

O2 Galvanic Sensor



100 04209
