Fluorescence 02 Analyser 0-40% - NEW TECHNOLOGY

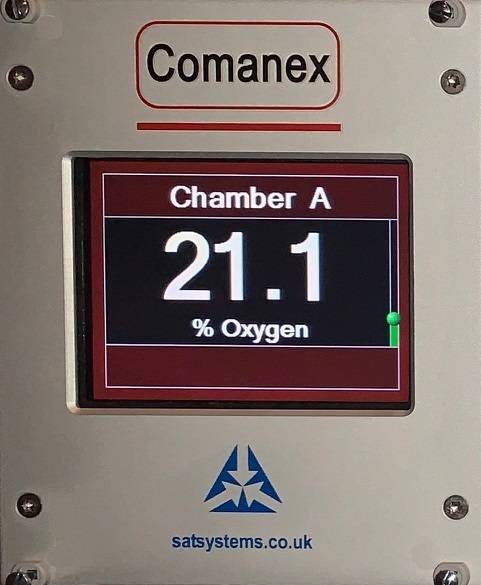

The new technology Fluorescence O2 Analyser is a touch screen instrument, for use in the commercial diving and medical hyperbaric industries.
The analyser is conformant with EU EMC directives and certified for use in heavy industrial environments.

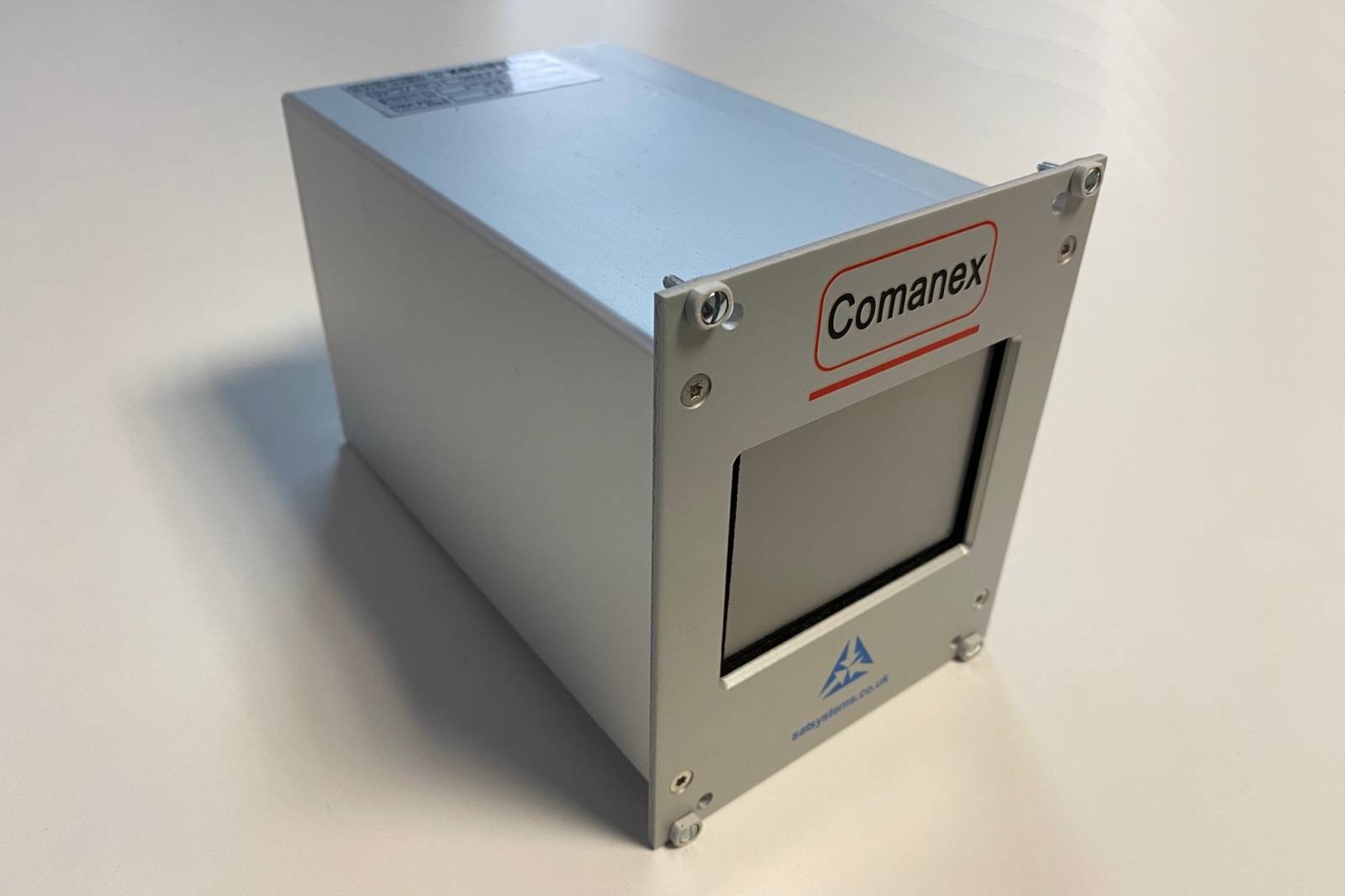

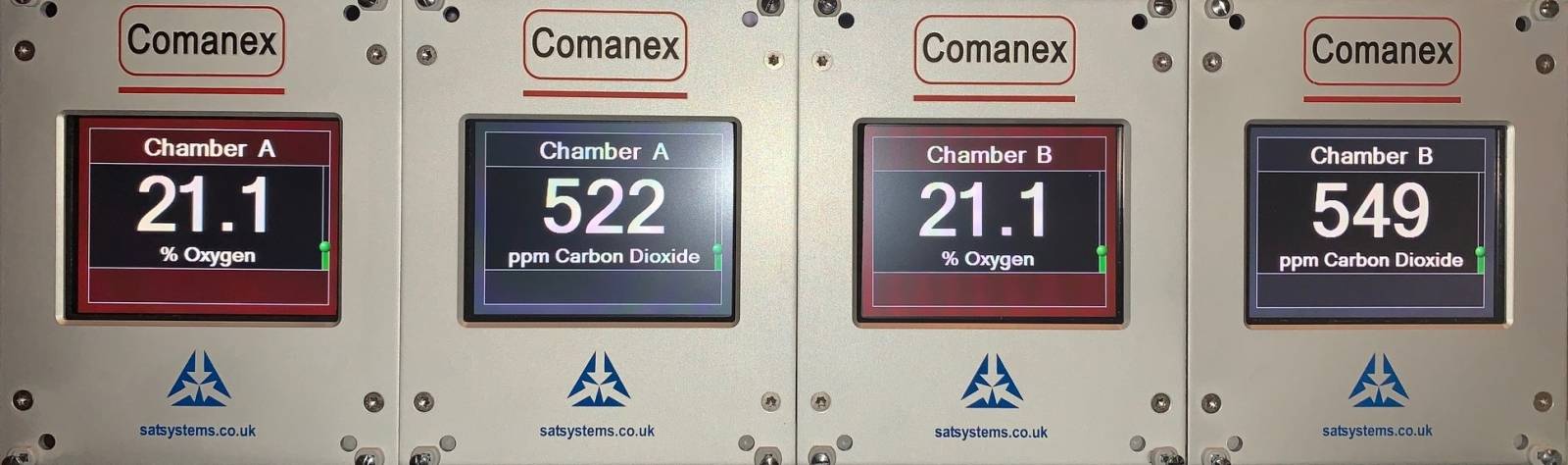

The analyser is 3U one quarter of 19'' rack and may also be panel mounted.
No gas flowmeter is required as the analyser features a built in sample flow controller and an electronic flow meter with flow failure alarm.
This unit is designed as an alternative to a galvanic sensor, with benefits of RoHS compliance, long life and higher resolution. This type of sensor has a very stable output and a long operational life, unlike electrochemical sensors, the fluorescence quenching sensor only depletes when it is powered up.
The sensor has a measurement range of 0–40% oxygen, accuracy of ±0.5%, resolution of 0.01% and response time of 30 seconds. The sensor has an operational life of up to 5 years.
The analyser includes an internal barometer to automatically compensate for variations in readings caused by atmospheric pressure changes.

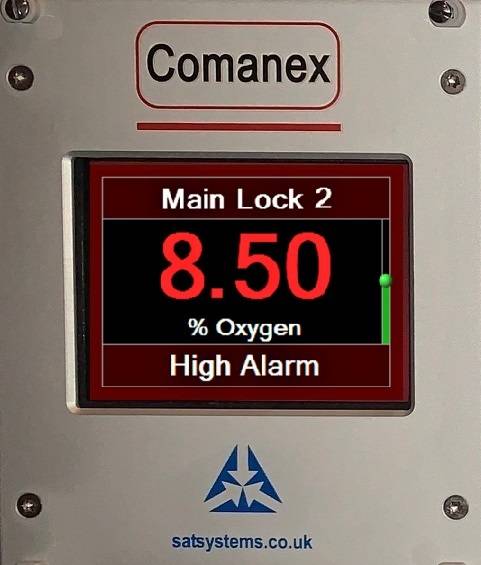

Each instrument has an Ethernet port for connecting to external data logging systems, an isolated 4-20mA output for connecting to legacy chart recorders, and a relay for indicating alarm state.
The Analyser has a built in internal storage which records the readings and operator inputs to provide a twelve month history of operation.

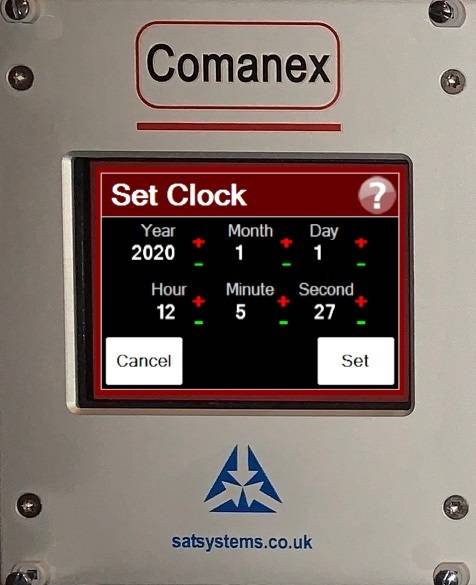

New range Analysers are fully configurable from their touch screen user interface.
Important settings are password protected to prevent unauthorised adjustment.
