Demand Regulator Breathing Mask
This unit enables to inhale a breathing mixture which is different from the one constituting the ambient atmosphere. It has been specially designed to breathe oxygen-rich mixtures used in hyperbaric oxygen therapy or by divers during chamber decompression.
Description:

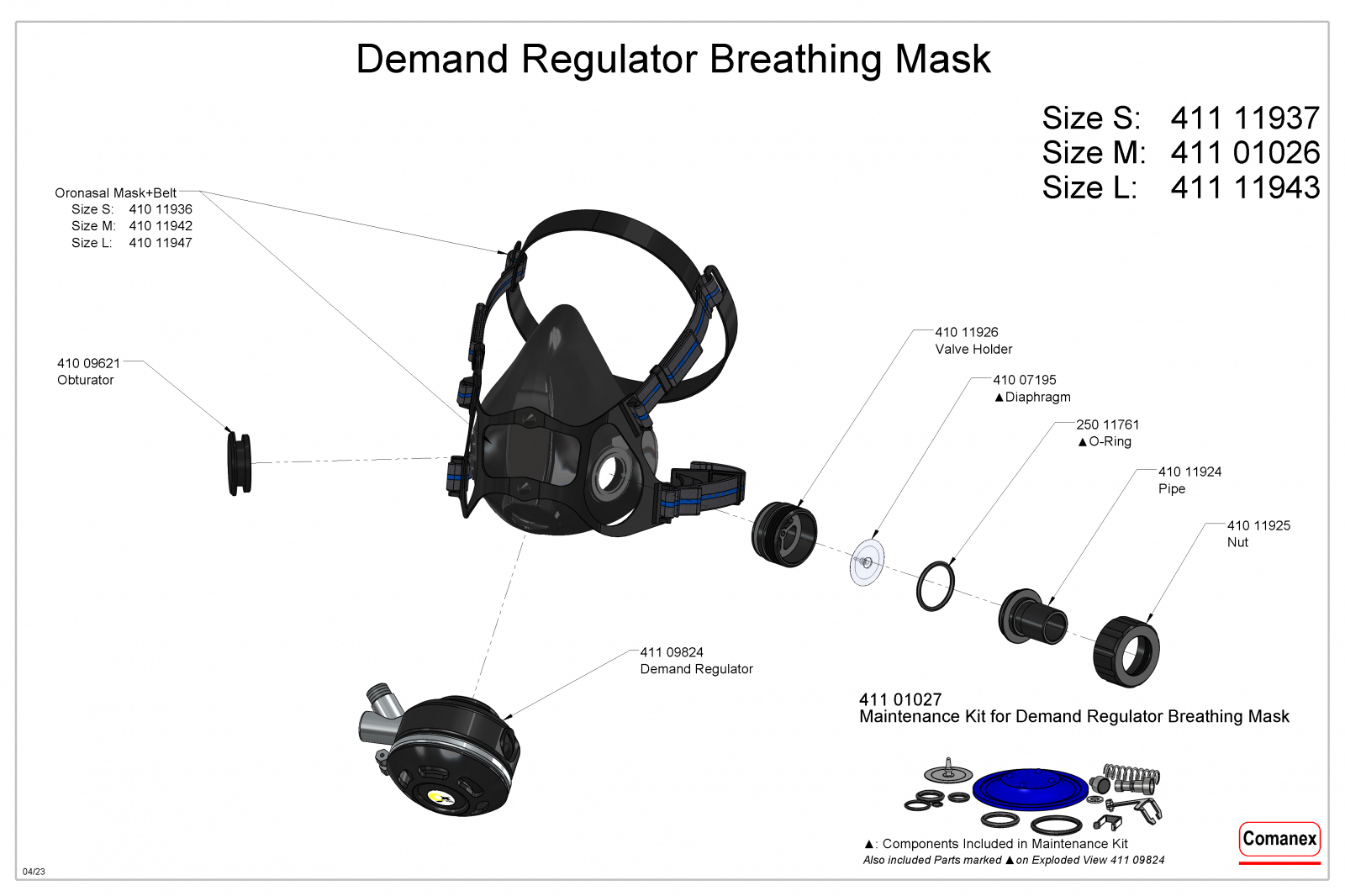

The breathing set consists of an oral-nasal mask equipped with a Demand Regulator and an exhaust valve. The regulator balanced demand-valve can supply a large gas-flow for a minimum inhaling effort.
The Demand Regulator Breathing Mask is available in 3 sizes : S, M and L.
The Demand Regulator Breathing Mask is available in 3 sizes : S, M and L.
Characteristics:
• Demand valve made of medical POM-C and stainless steel
• Fully rated for use with pure O2 under pressure
• Gas supply between 3 and 8 bar
• Opening threshold: 3 millibar depression
• Maximum gas flow: > 400 l/min for a 5 millibar depression
• Oral-nasal Mask and Diaphragm made of silicone
• Weight: 450 g
Maintenance:
• Remove all fittings and straps
• Wash the Oro-nasal Mask with soapy water
• Rinse thoroughly with fresh water and dry
• Periodically check the condition of the Oro-nasal Mask and its straps
• Every year replace the exhaust valve (410 07195)
• Carry out demand-valve maintenance according to instruction
Old chrome-plated version no longer available
Maintenance Kits for old version remain available (refer to reference table below)
Maintenance Kits for old version remain available (refer to reference table below)

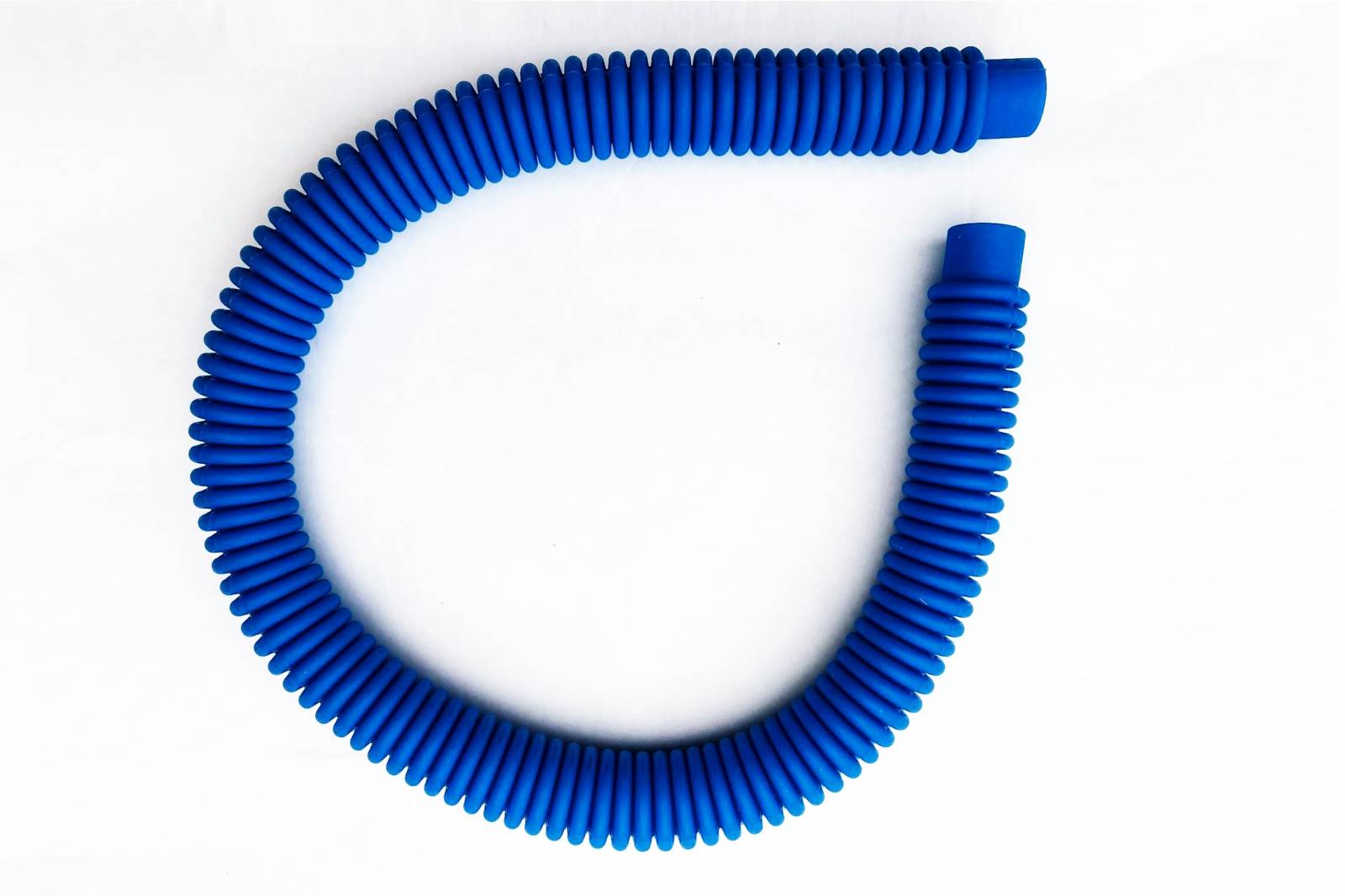

Corrugated Hose (sold separately):
• Heavy-duty LP Hose to connect the Oro-nasal Mask to the Dump Valve
• Heavy-duty LP Hose to connect the Oro-nasal Mask to the Dump Valve
• Made of Medical silicone
• Length: 800 mm
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
Demand Regulator Breathing Mask - Size S |
411 11937 |
|
Demand Regulator Breathing Mask - Size M |
411 01026 |
|
Demand Regulator Breathing Mask - Size L |
411 11943 |
|
Silicone corrugated hose (length = 800 mm) |
400 08390 |
|
HP BIBS hose (length = 1.50 m) |
210 10506 |
|

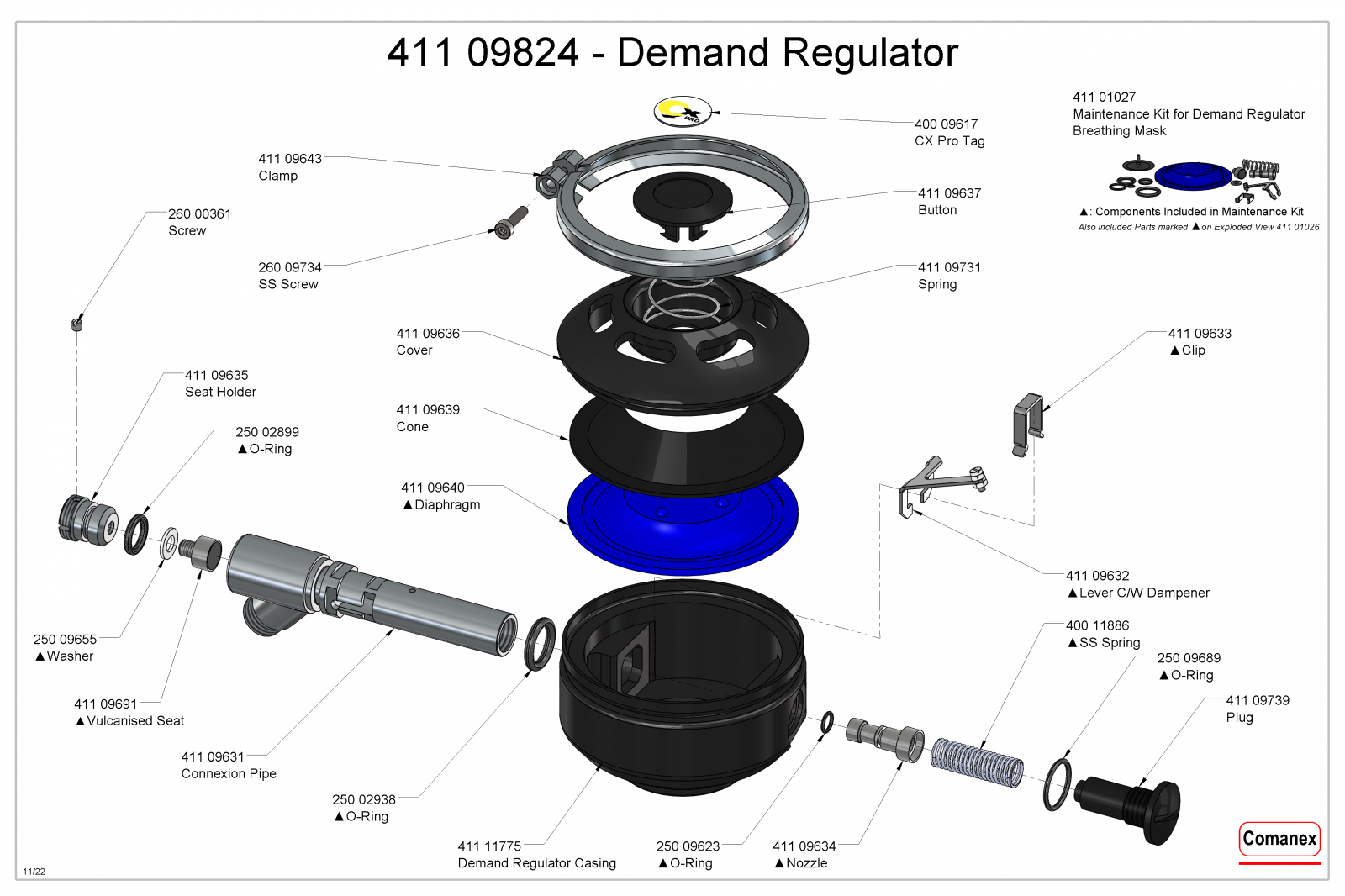

Maintenance Kit for Demand regulator breathing Mask |
411 01027 |
|

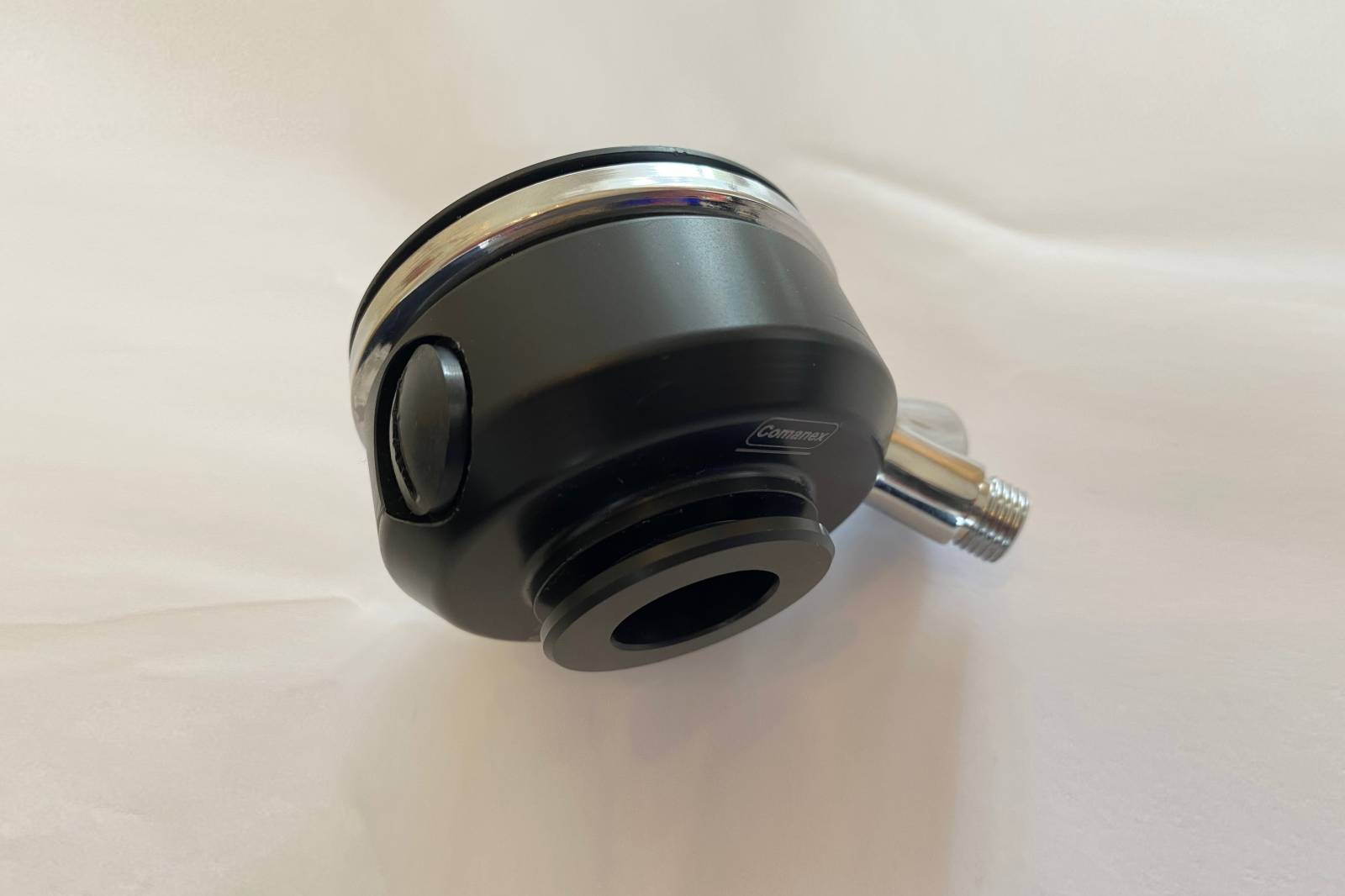

Demand Regulator (alone) |
411 09824 |
| Oro-Nasal Mask for BIBS - Size S | 411 02073 |
| Oro-Nasal Mask for BIBS - Size M | 411 09809 |
| Oro-Nasal Mask for BIBS - Size L | 411 11957 |
