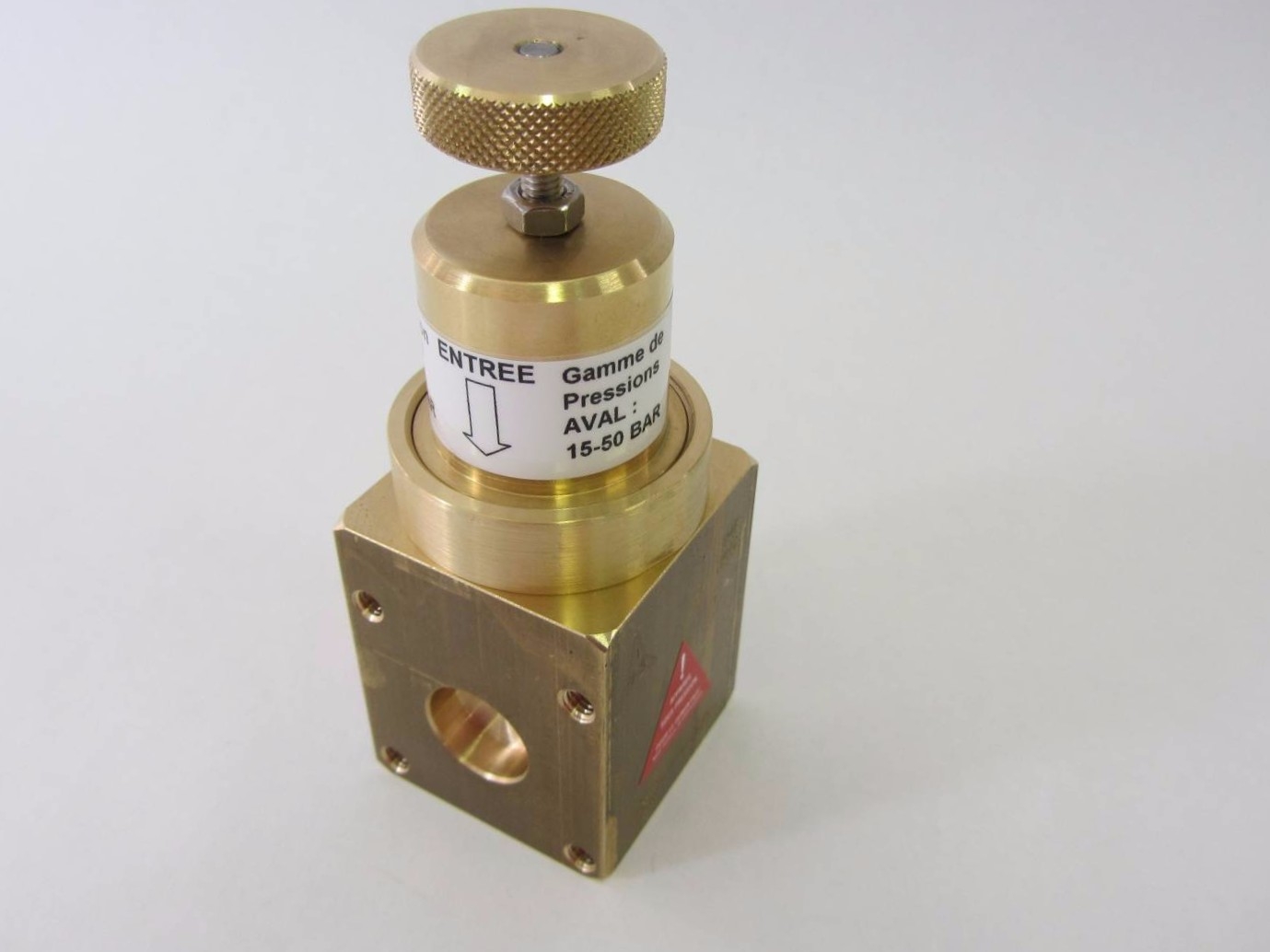

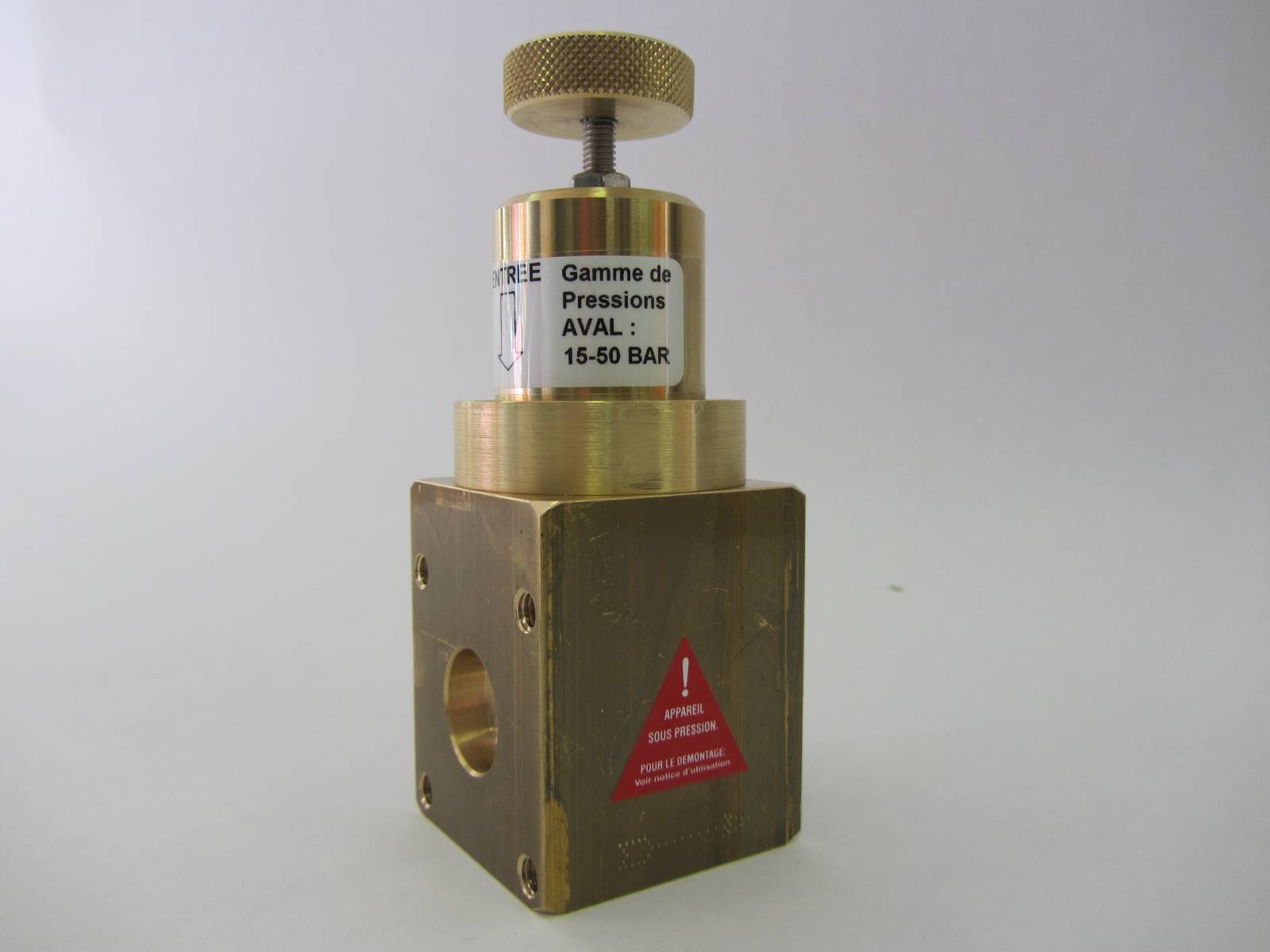

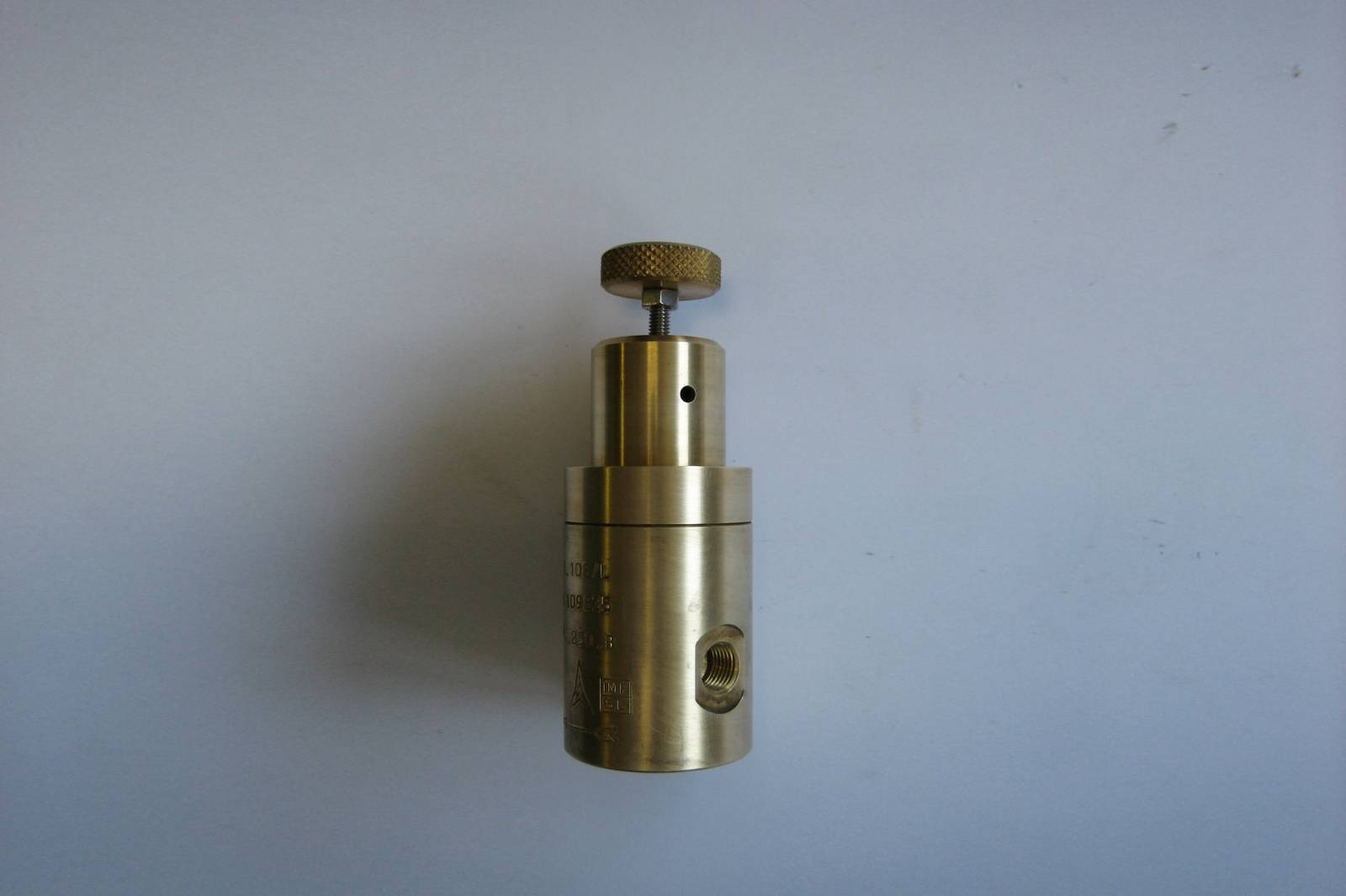

D108 Pressure reducer
D108 Pressure Regulator works like the D106 Pressure Regulator, but the diaphragm is replaced by a piston to allow outlet pressure up to 50 bar
• Brass body
• Back-up pressure: 250 bar
• Outlet pressure: 2 to 50 bar
• Seat: PCTFE
• Inlet/outlet: 1/4” BSP
• Cleanliness: O2 use
• Brass body
• Back-up pressure: 250 bar
• Outlet pressure: 2 to 50 bar
• Seat: PCTFE
• Inlet/outlet: 1/4” BSP
• Cleanliness: O2 use
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
D108 pressure reducer |
132 00192 |
|
Integrabloc D108 pressure reducer |
132 00191 |
|
D108 pressure reducer repair kit pos. 3 - 6 - 7 - 24 - 25 |
133 00302 |
