UW Colour Camera CYCLOP 2014

This diver held TV camera enables the surface to control at any time the dive as it is seen by the diver and to:
- give technical instructions and assistance to the diver for more efficient work,
- improve communication between diver and surface as well as diver's safety,
- save the use of more sophisticated equipment, such as ROVs, for a similar result.

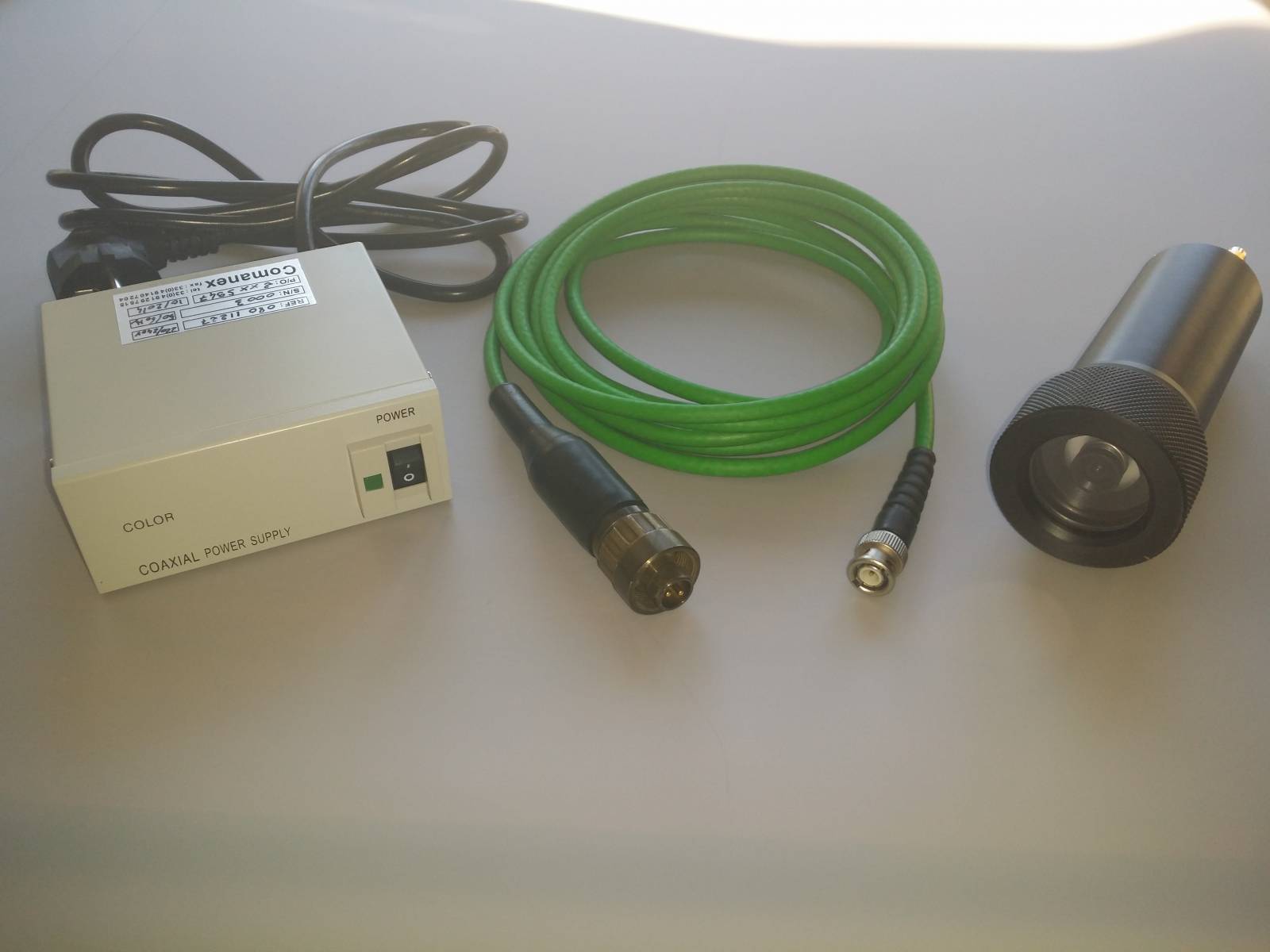

The Complete CYCLOP 2014 system features four main components:

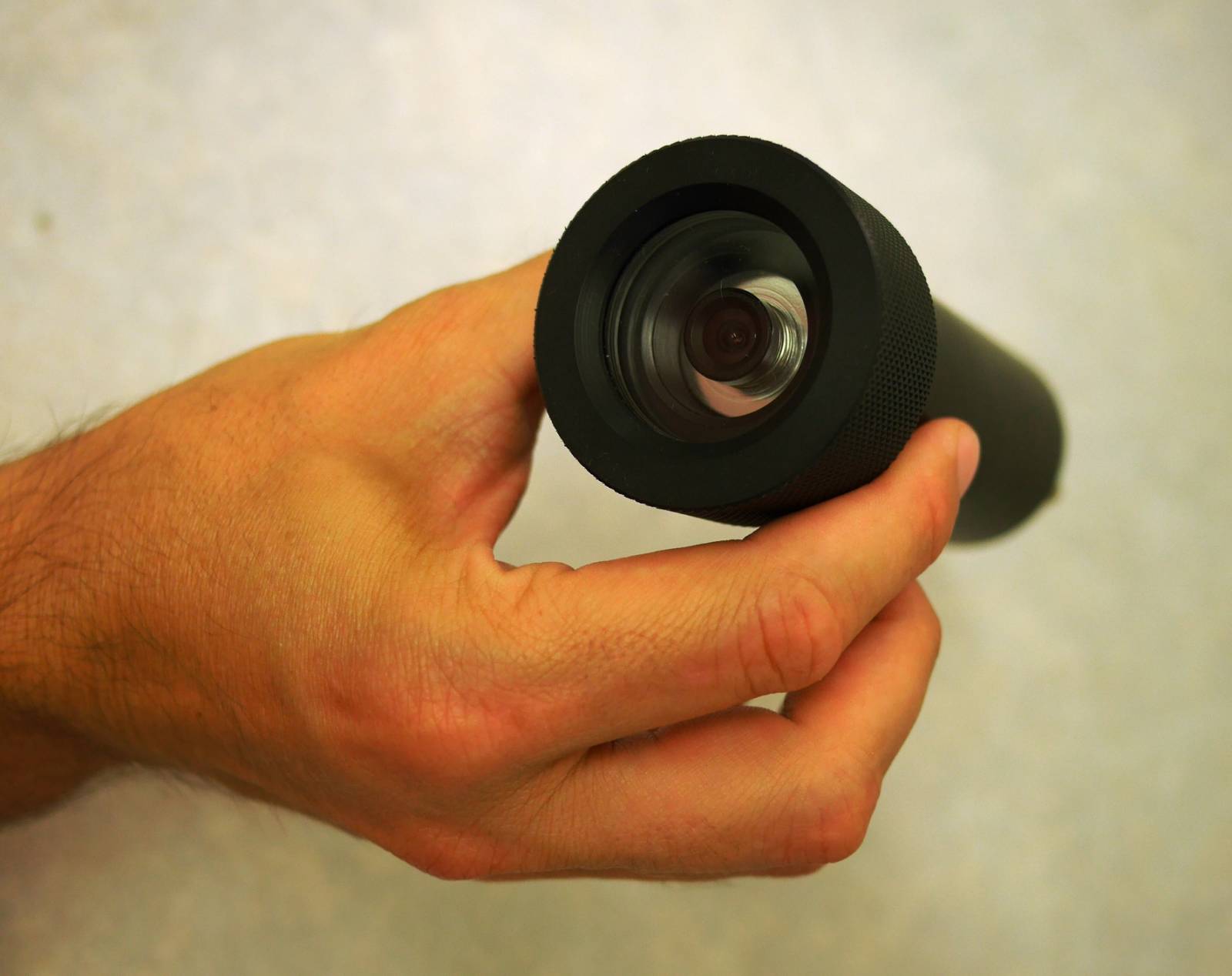

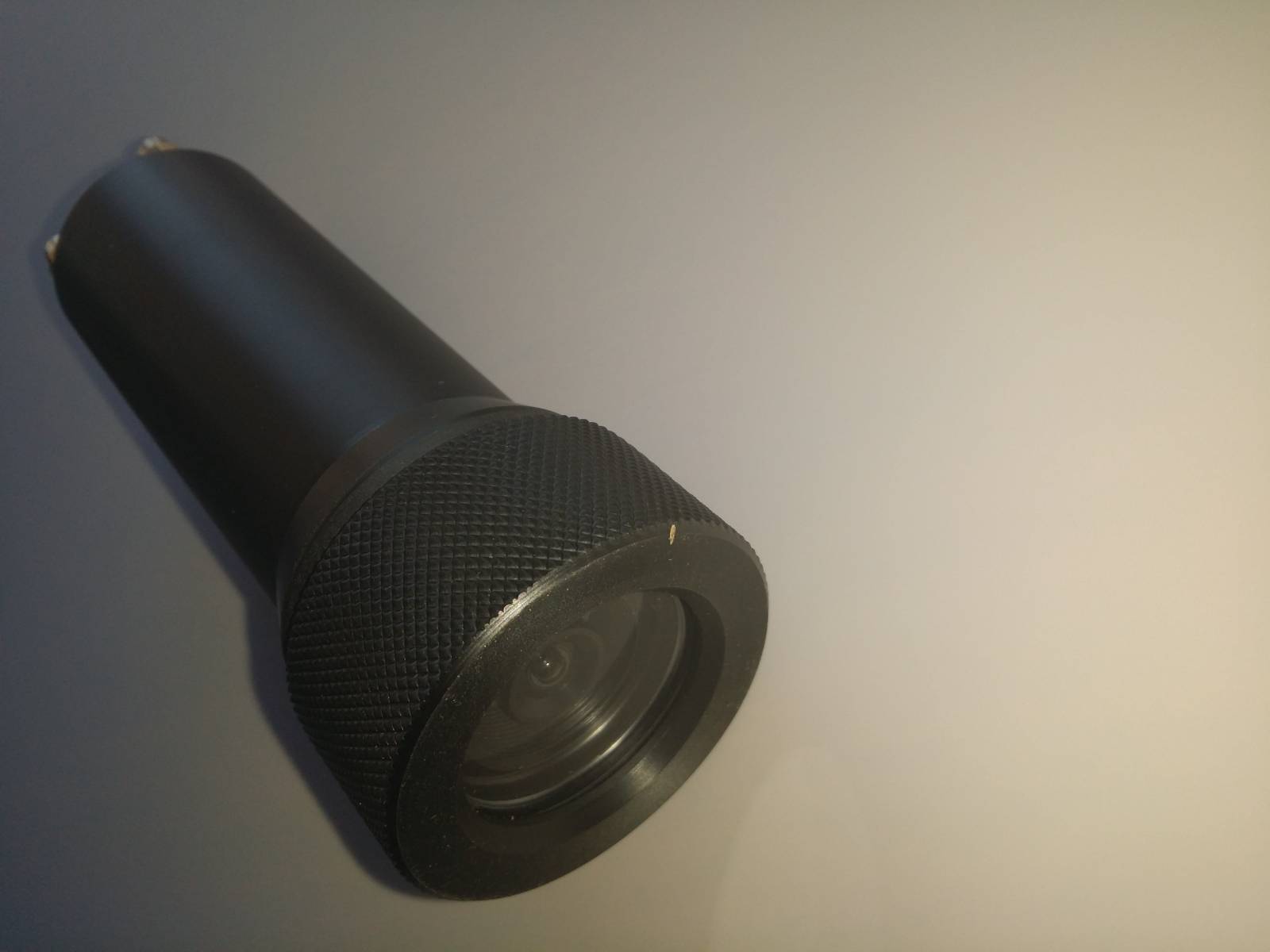

 1 - One CCD colour camera, water-resistant, compact,
  • Image sensor device : SONY EXVIEW HAD ultra-high sensitivity CCD camera
  • Image size: 1/3”
  • Scanning system: PAL
  • Picture elements : HR - 537 (horizontal) x 597 (vertical)
  • Horizontal Resolution : 520 TVL
  • Minimum illumination : 0.01 Lux
  • Light wavelength : 400-700mm
  • Interlace : 2:1 interlace
  • Video output level : 1.0v(p-p)(75 ohms)
  • Video S/N ratio : more than 50db
  • Day & Night : Under lighting 2 Lux
  • Electronic iris : Setting ON
  • Auto exposure system : auto electronic iris: 1/50 – 1/100,000 sec
  • Gamma : 0.45
  • Built in lens : Board lens 3.6mm – Fixed iris F2.0
  • Constant current : AC/one cable type : NOT EXCEED 100mA
  • Housing : Delrin container
  • Glass : PPMA
  • Service pressure : 30 bars
  • Connections : M10 2-pin female Jupiter bulkhead
  • Dimensions : external diameter 43 mm, length 160 mm
  • Weight : in air 360 g

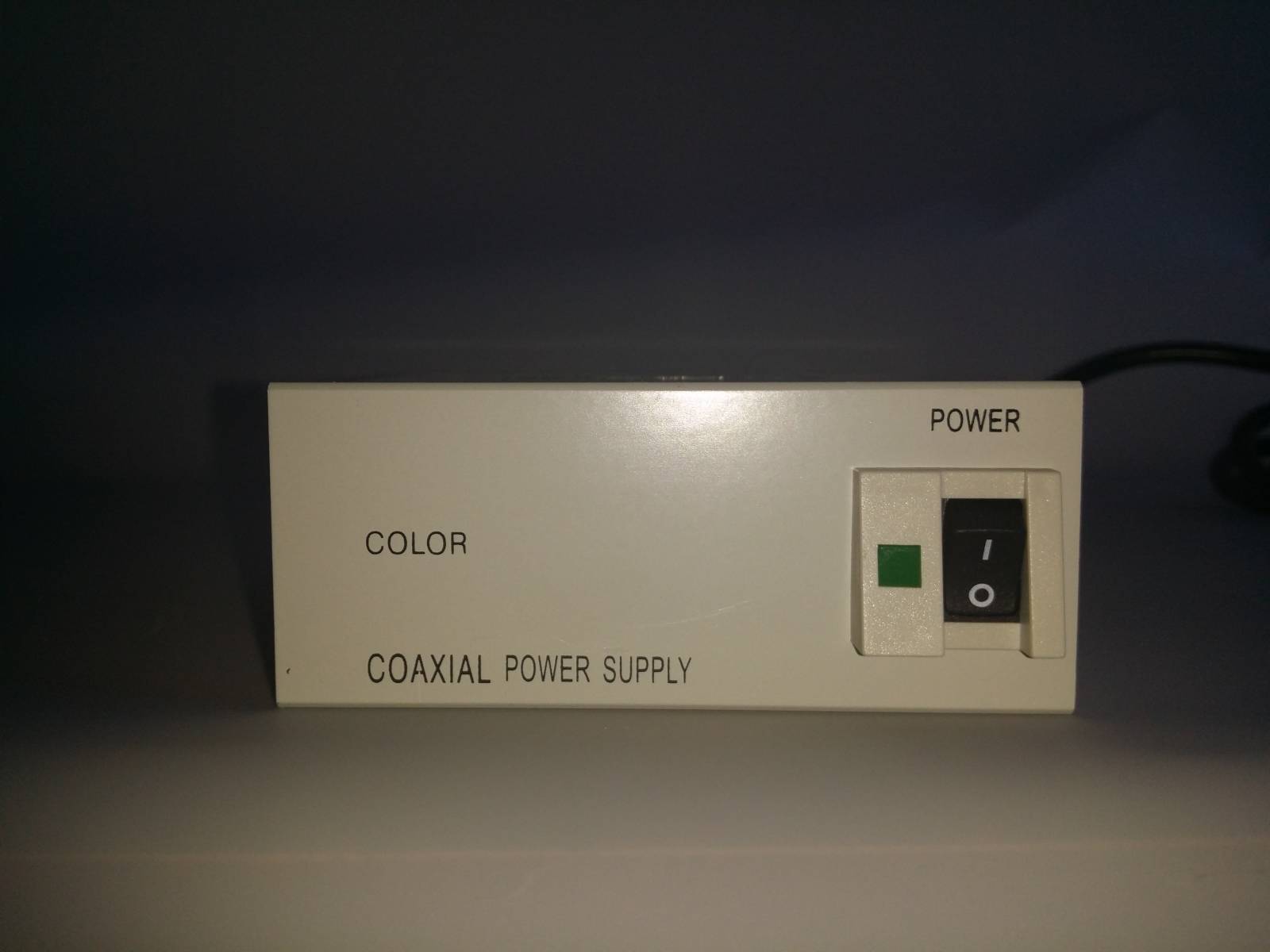

2 - One surface power supply
  • The power supply is housed in a painted steel case.
  • Camera power supply system: DC constant current over coaxial cable
  • Operation temperature: -15°C to 55°C
  • Humidity: Less than 90%
  • Power consumption: 3.5W
  • Power requirement: 240VAC – 50/60Hz
  • Dimensions: 96mm depth x 106mm width x 45mm height
  • Weight: 620 g

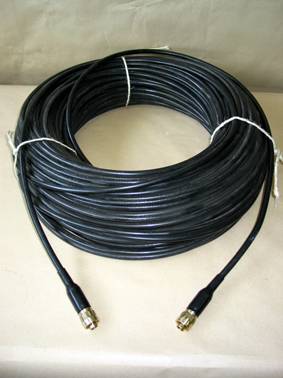

3 - One single coaxial cable (75 Ohm or 50 Ohm) umbilical (Optional)

4 - One colour video monitor (Optional)
Contact-us
Under Water Colour Camera CYCLOP 2014 080 11226
Power Supply 080 11227
Umbilical C/W End Connectors    (Length to be defined 50 to 400m) 290 03982
Colour Monitor 080 04574
