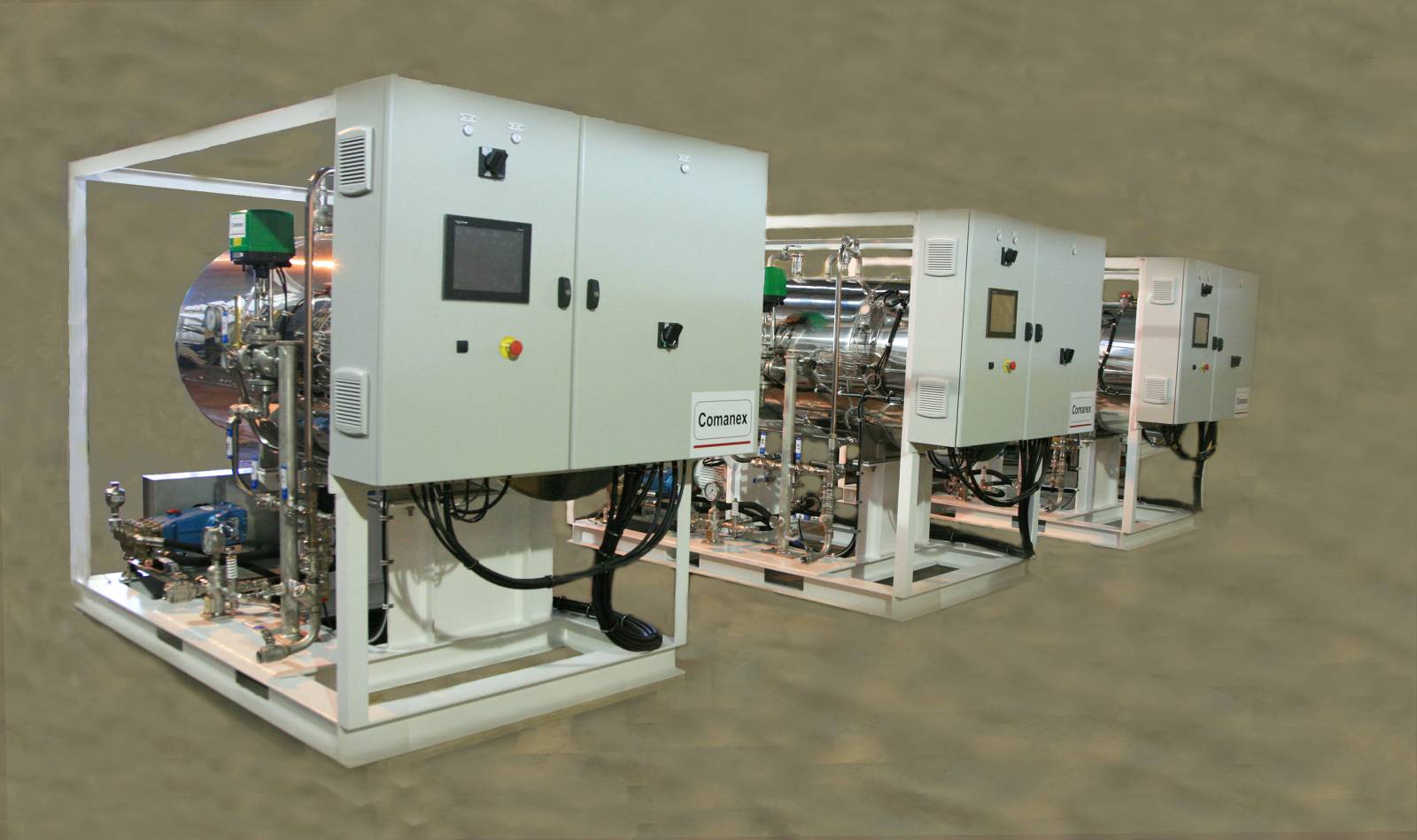

Electrical Sea Water Heater
The Sea Water Heater is a built-in system aiming at providing heating to one bell and its divers.
3 Type of Sea Water Heater are available:

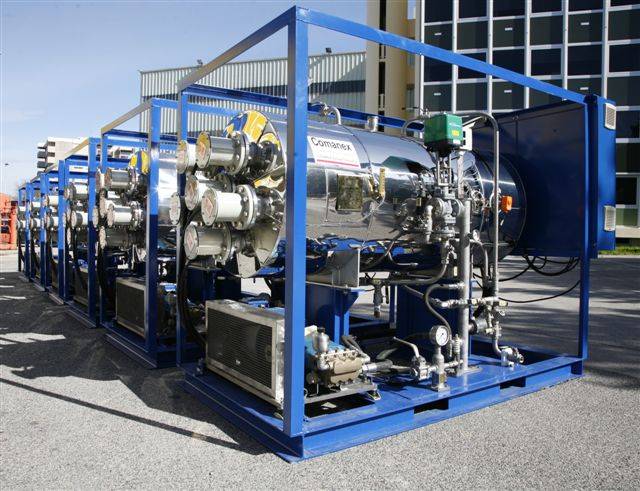

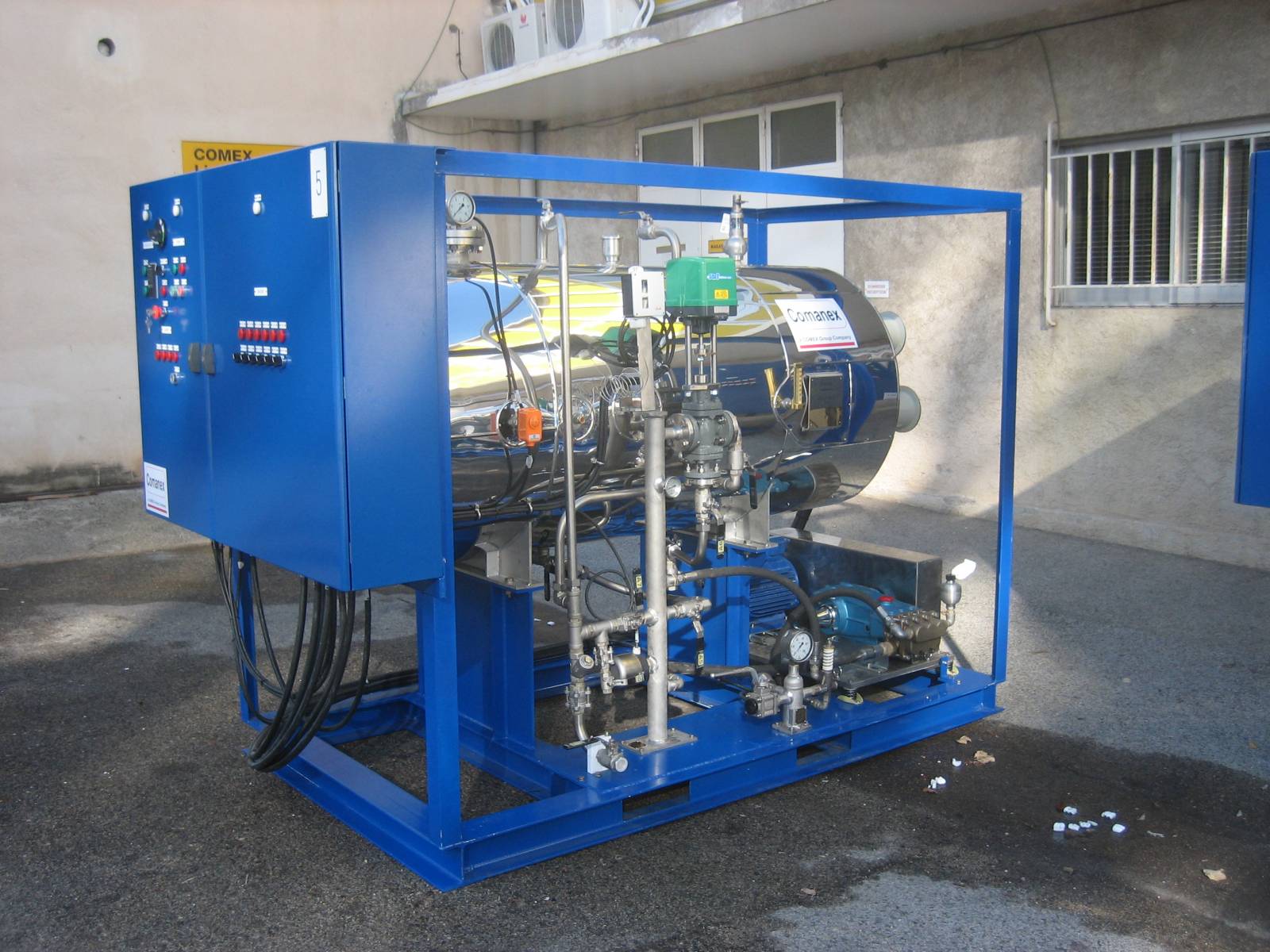

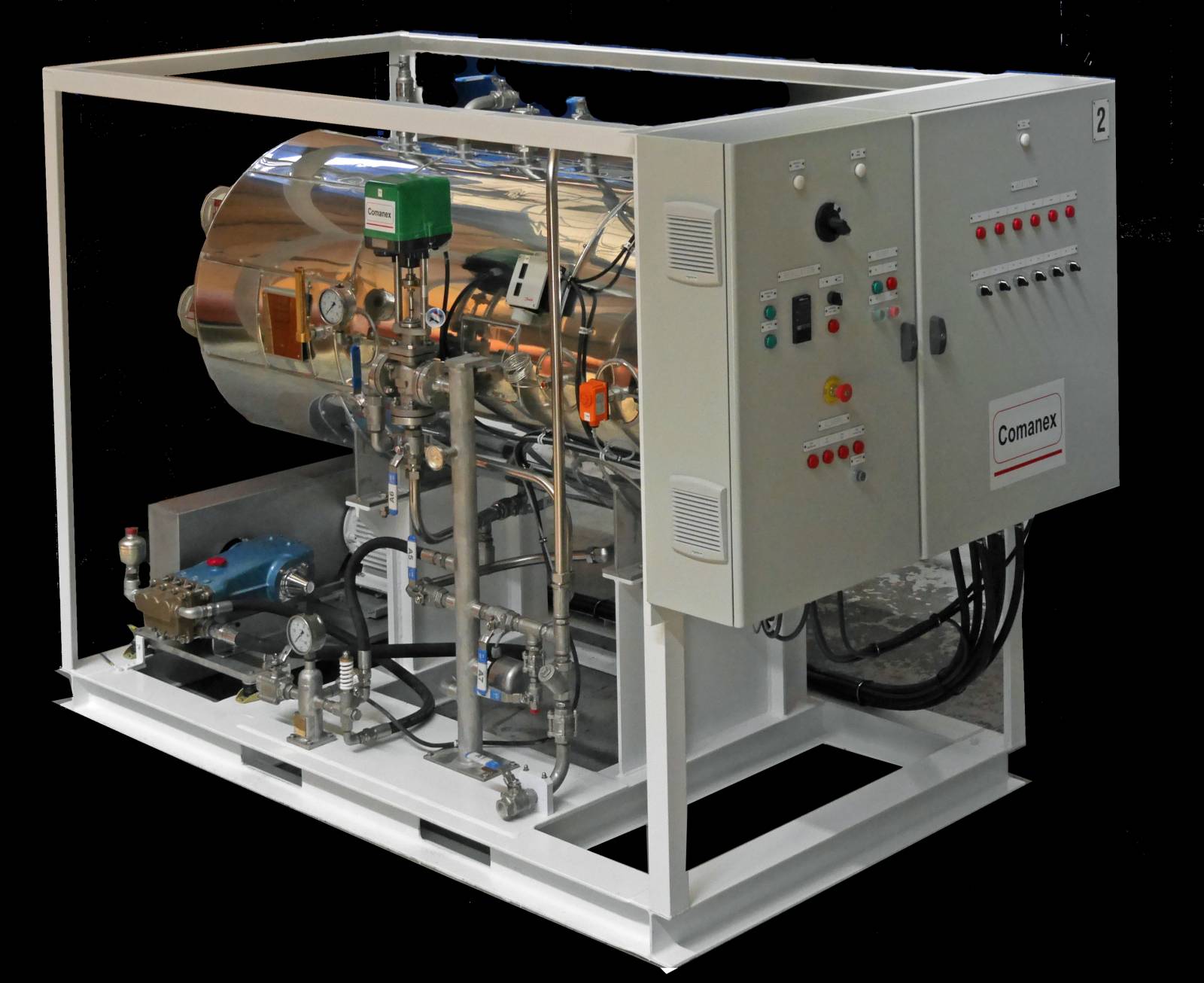

SWH 800 litres:
The sea water is heated to a preset temperature in the 800 litre tank by Inconel immersion heating elements
for high corrosive sea waters.

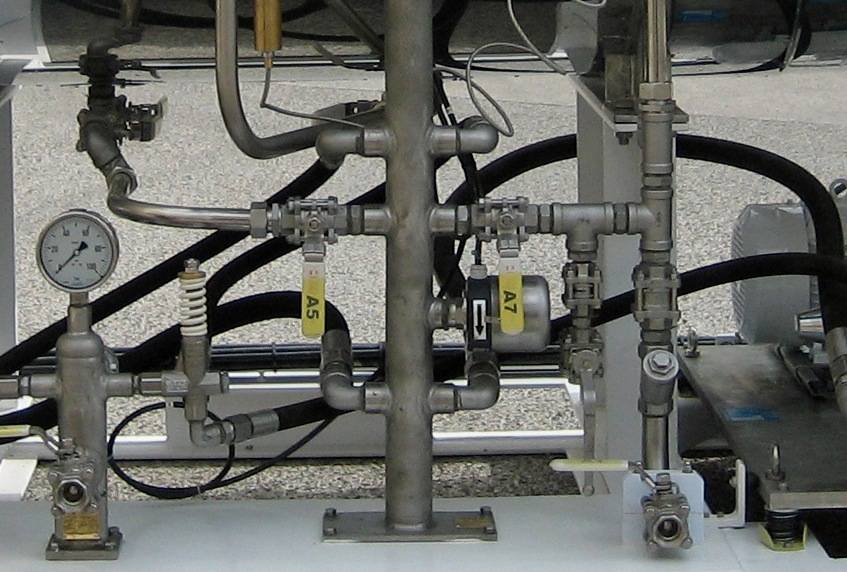

The delivery temperature stability is obtained through a 3-way valve mixing the hot water with cold sea
water. The water is then pressurized to the desired pressure through a booster pump specially designed to
handle hot sea water.

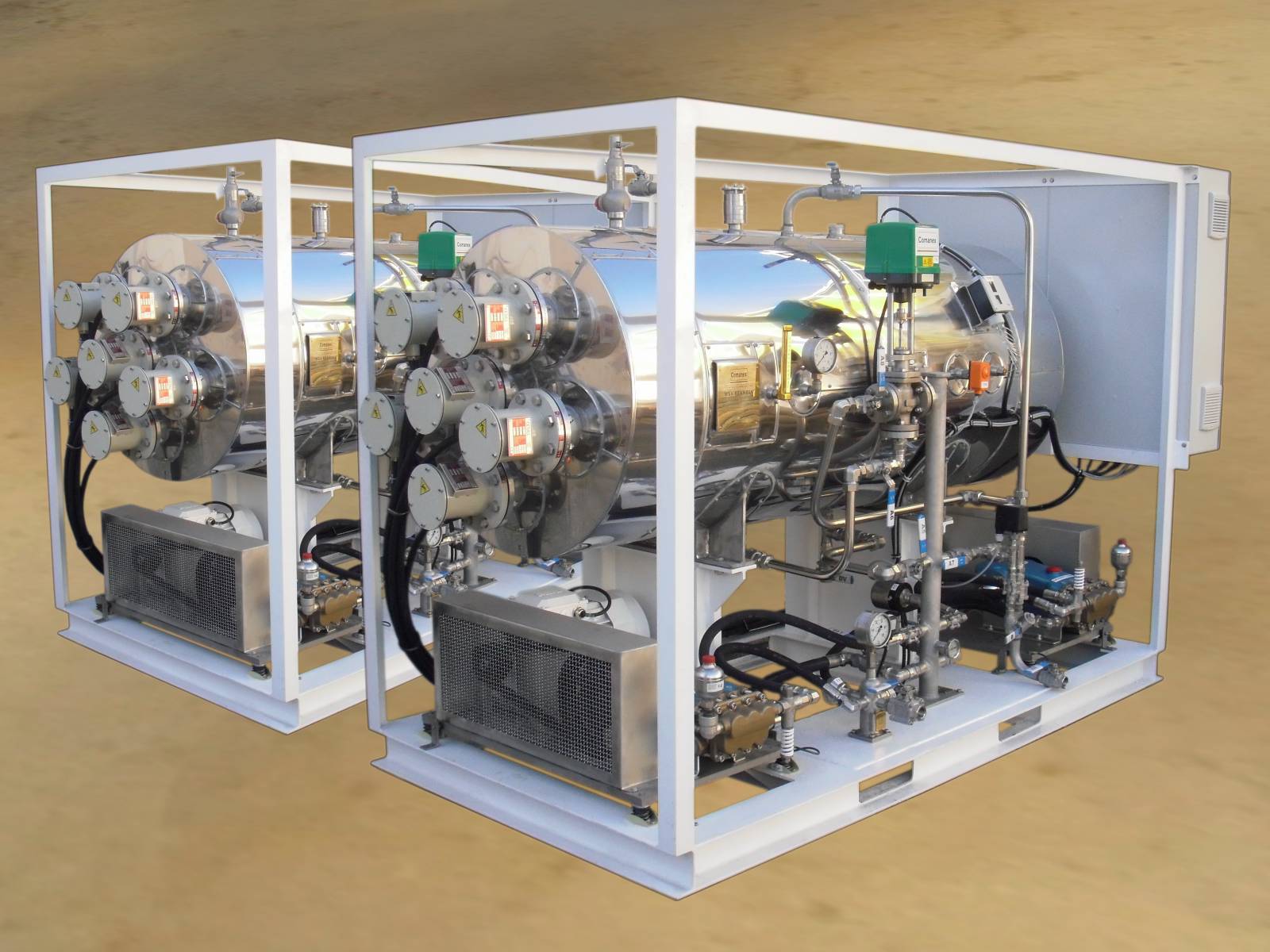

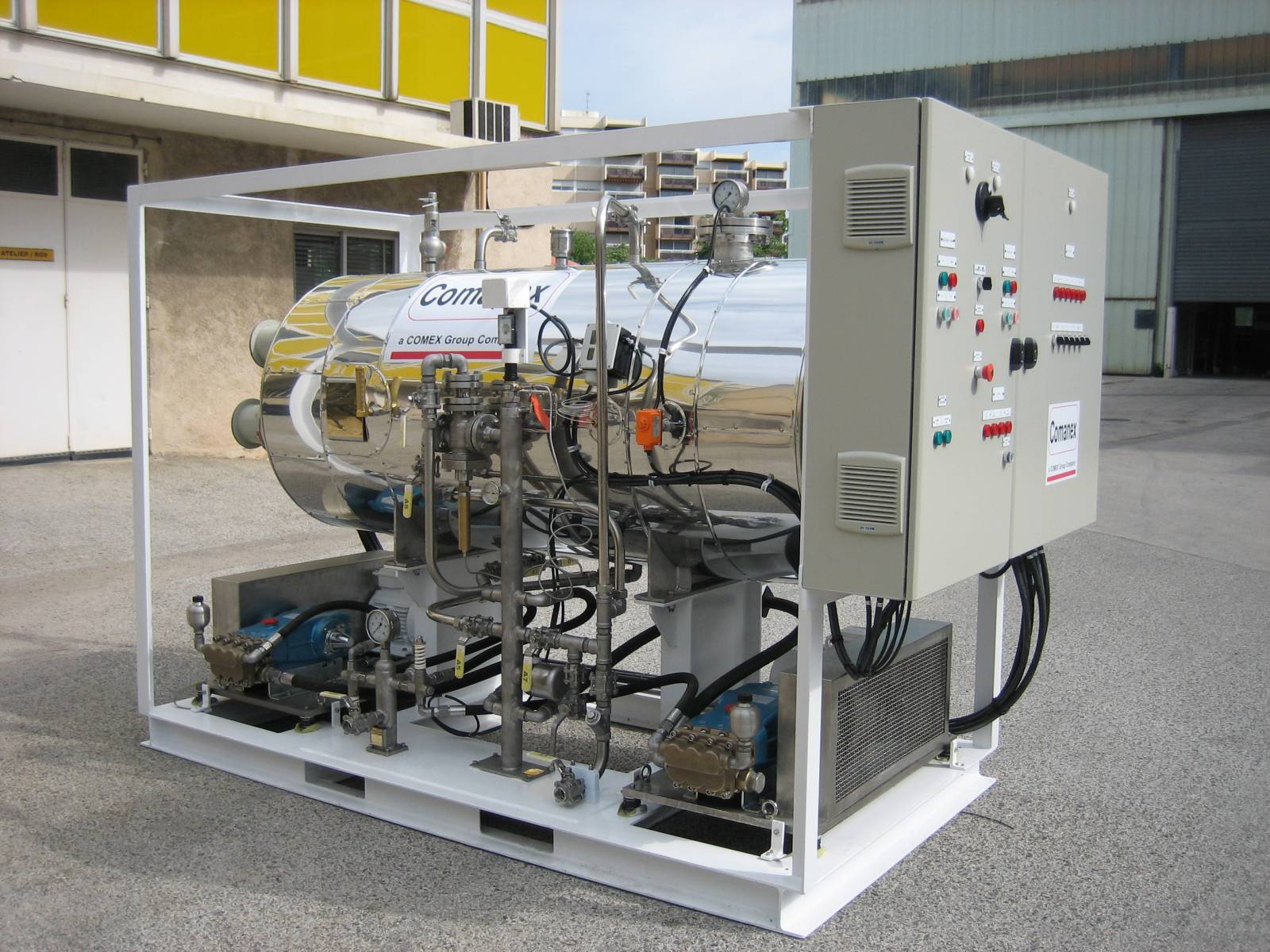

Each SWH is fitted with 2 pumps for redundancy reasons. Pressure and flow are adjusted to the client’s
standard.
In case of main electric power failure, the reserve tank of 800 litres allows as requested by the rules at least
20 minutes of continuous delivery to the divers, enabling them to safely return to the diving bell.
One remote control panel featuring control lights and temperature read-out also allows to adjust the delivery
temperature from the dive control.

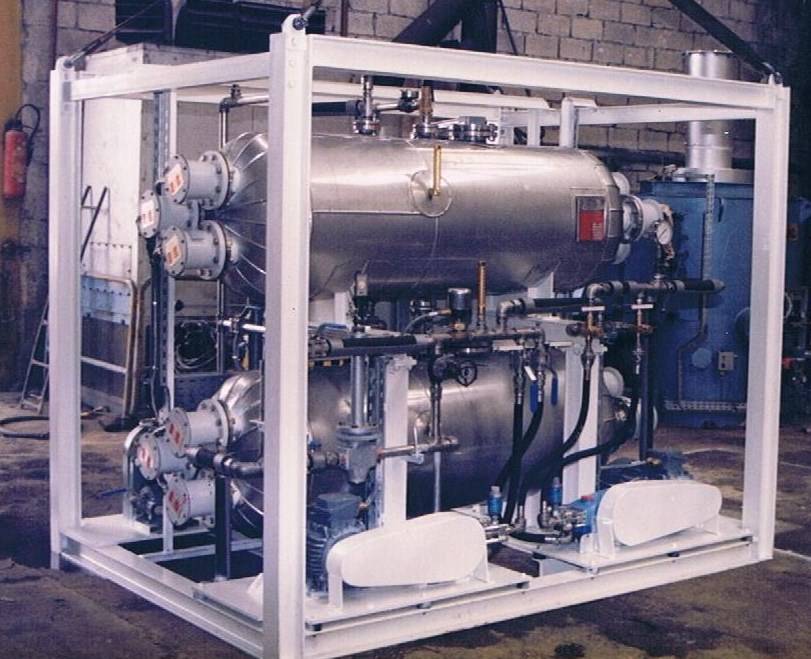

SWH 2x 400 litres:
Idem the 800 litres.
To ensure full redundancy, the 2 tanks and the 2 booster pumps are supplied from two different sources.

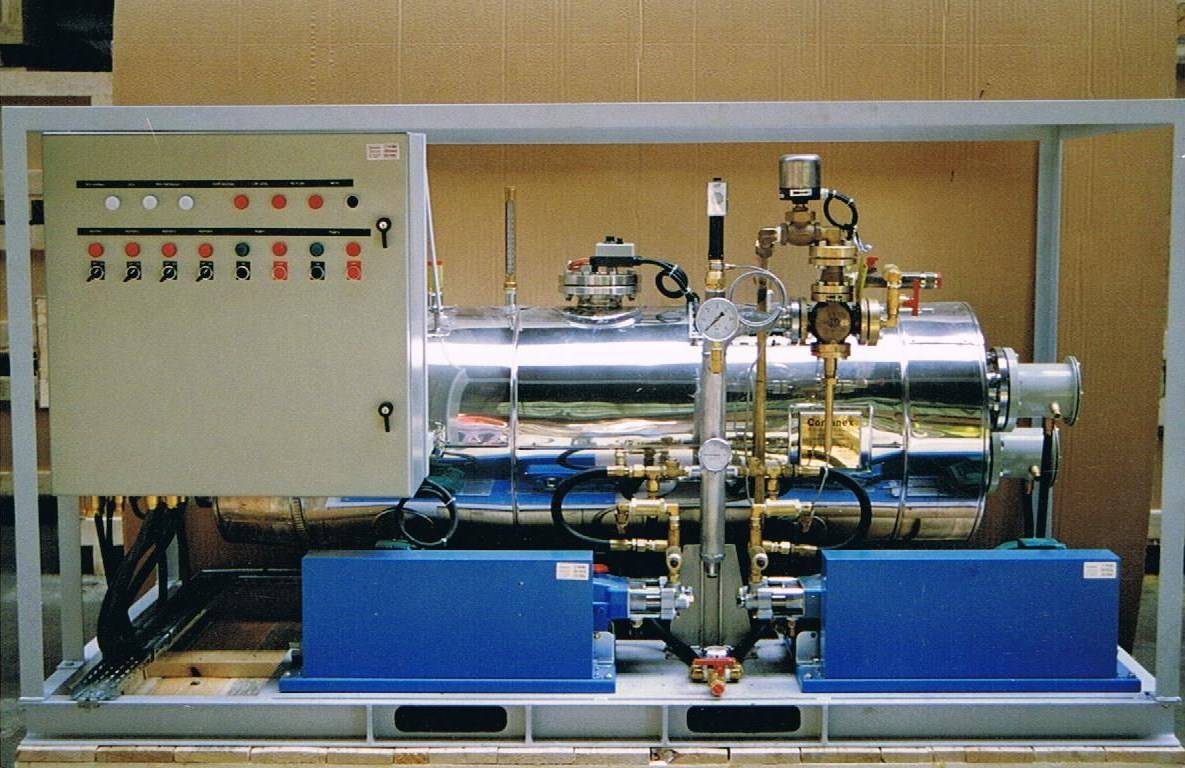

SWH 400 litres:
The 400 litre Sea Water Heater is a built-in system aiming at providing heating to 2 bounce divers.
It features one thermostatic regulation with manual back-up, one booster pump and one delivery manifold.
Options:
• Two pumps can be provided for better redundancy.
• One remote control panel featuring control lights and temperature read-out also allows to adjust the delivery temperature from the dive control.
Option: the electrical SWH may be coupled with an oil-fired heater for 100% redundancy.
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
Electric SWH 800 litres, 150 kW |
070 01378 |
|
Electric SWH 800 litres, 180 kW |
070 10224 |
|
Electric SWH 800 litres, 210 kW |
070 10361 |
|
Electric SWH 2x400 litres, 90 kW |
070 10336 |
|
Electric SWH 2x400 litres, 150 kW |
070 07585 |
|
Bounce diving electric SWH, 60 kW |
070 07587 |
|
Bounce diving electric SWH, 75 kW |
070 07586 |
|
Bounce diving electric SWH, 100 kW |
070 05622 |
