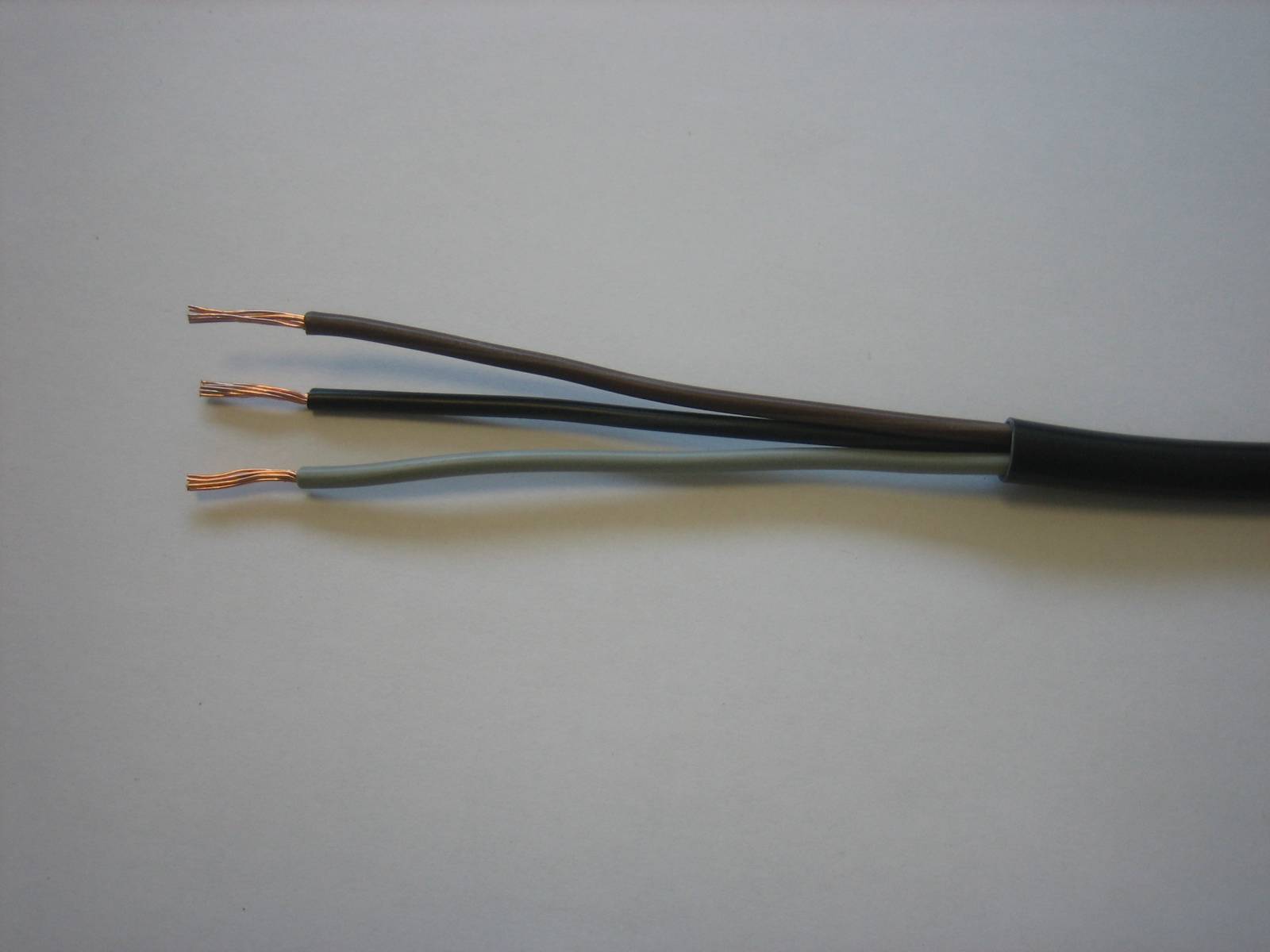

Classified Electric Cables

• Plain copper core, class 5, IEC 60228
• Cross-linked halogen free polyolefin
• Nominal voltage: 600/1000 V
• Test voltage : 3500 V
• Working temperature: - 30°C to + 125°C
• Max. temperature of the core: + 90°C
• Max. temperature of the core in case of short-circuit: + 250°C
• Excellent tear resistance according to ISO 34-1
• Halogen free according to IEC 60754-1
• Fire retardant according to IEC 60332-3-22
• Flame retardant according to IEC 60332-1
• No corrosivity of smoke according to IEC 60754-2
• Low smoke opaqueness according to IEC 61034
• ITC and INC conform to the requirements of the UITP Document
• Bending radius approx. 5 x diameter
• BVM and DNV certifi cation
• DCN approval N°620315/2003 ING CN
• IEC 60092-350
