Bell Penetrators

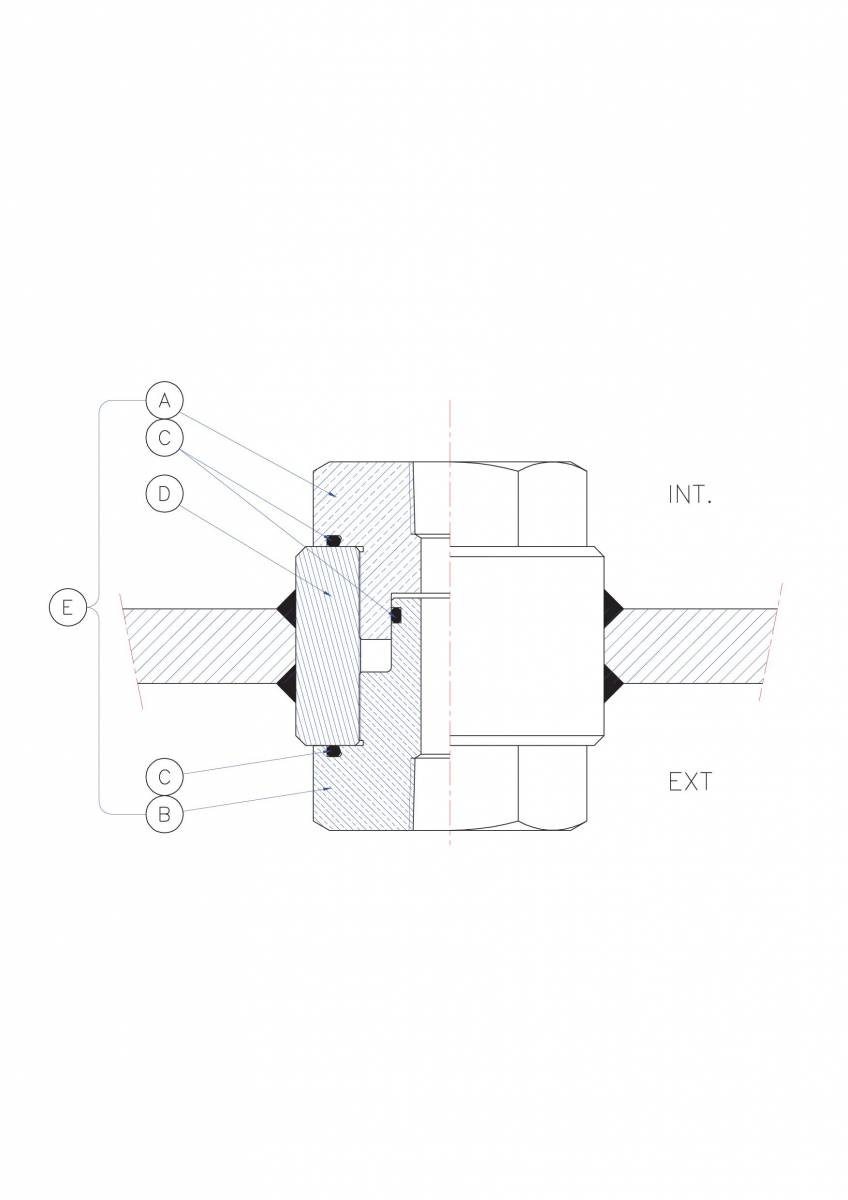

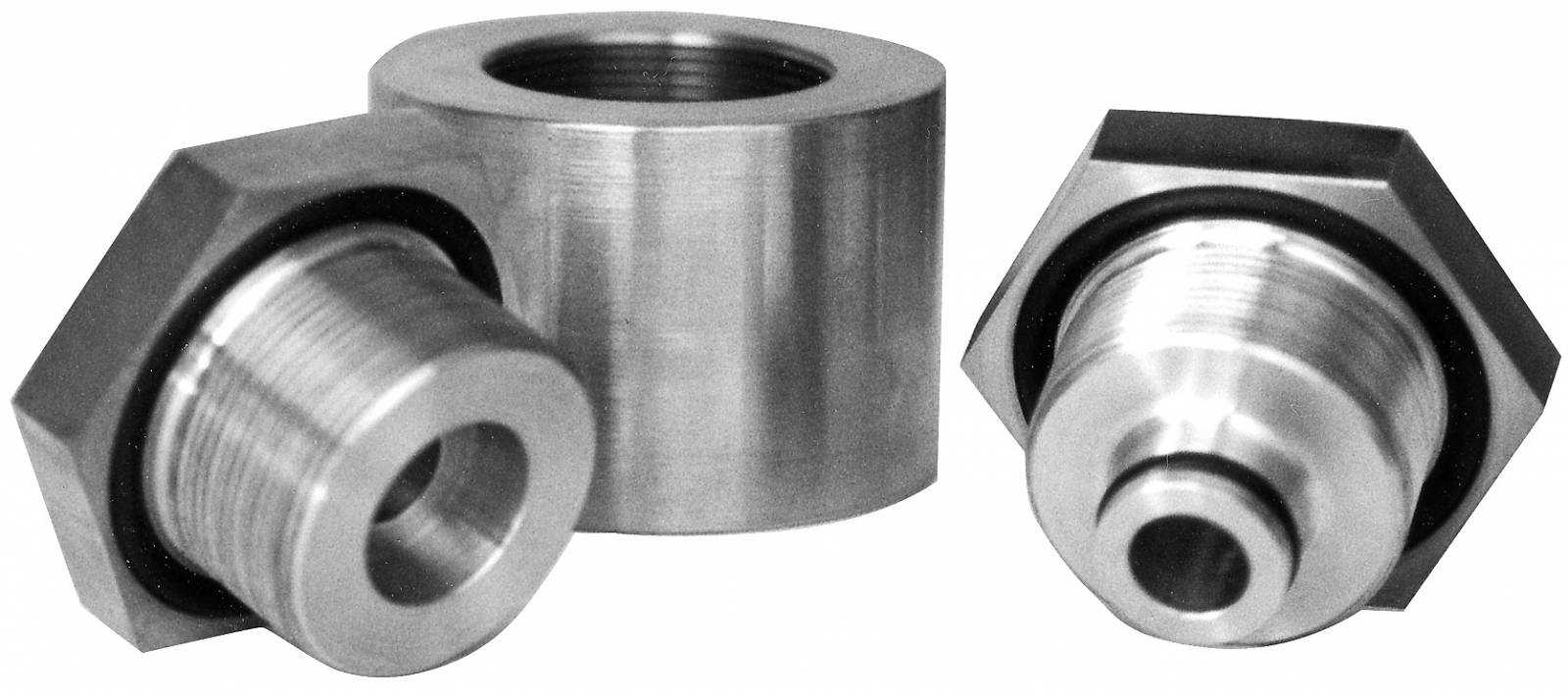

The Bell penetrator is made of one carbon steel penetrator to be welded on the diving bell hull.
Then the bronze bushing can be screwed into the penetrator.
The bushing features 1/4"NPT, 1/2"NPT or 1"NPT hole each side to connect skin valves.
This prevent the fluid being in contact directly with the hull.
When thread is damaged, only the bronze bushing are to be changed.
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
1/4” NPT Bushing kit (A+B+C) |
170 02271 |
|
1/2” NPT Bushing kit (A+B+C) |
170 02272 |
|
1” NPT Bushing kit (A+B+C) |
170 02273 |
|
Seal kit 1/4” & 1/2” (C) |
250 02269 |
|
Seal kit 1”(C) |
250 02274 |
|
Carbon steel penetrator (D) |
170 02270 |
