Bell Lifting Wire Release Socket

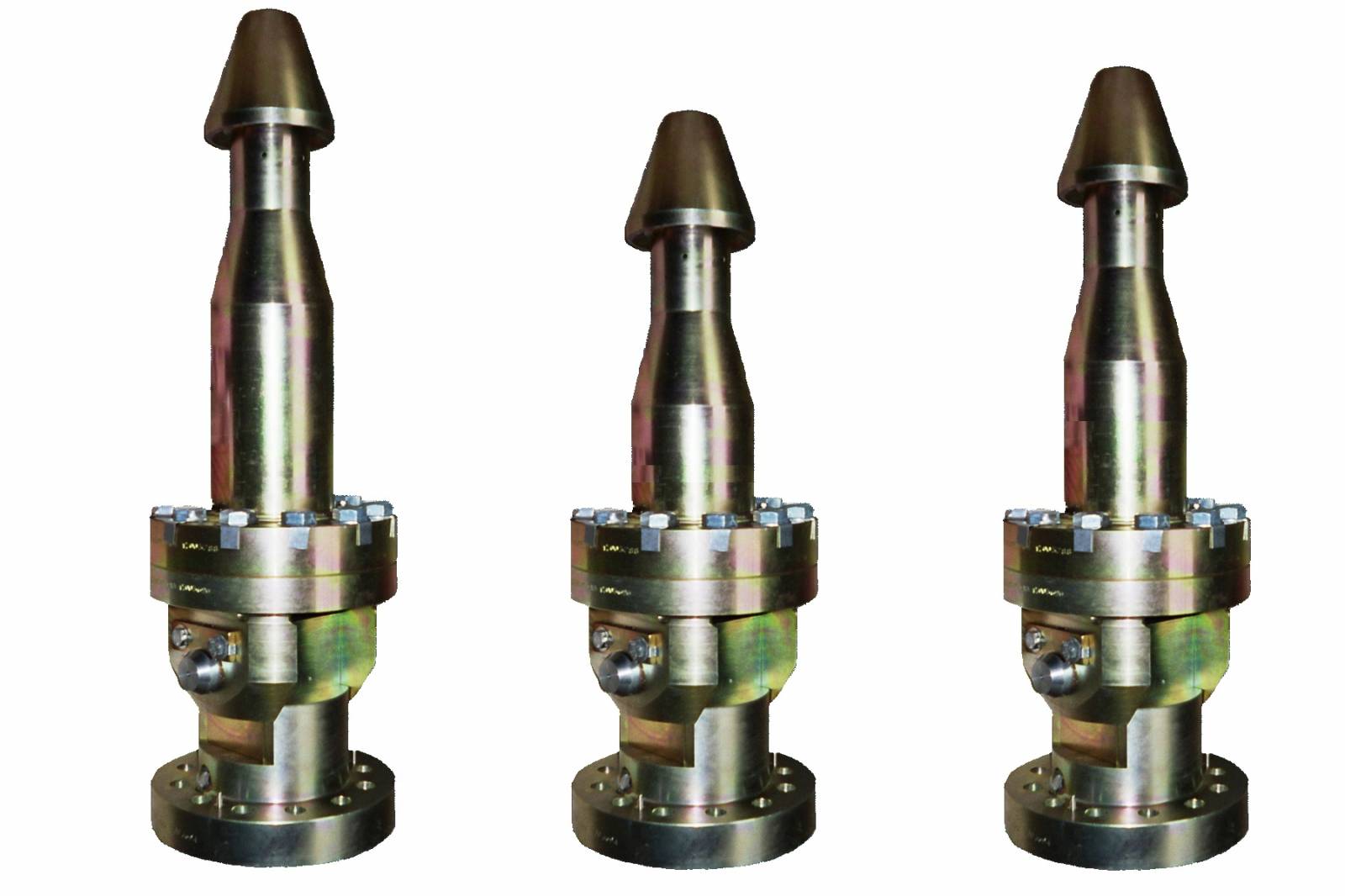

COMEX standard releasable sockets are designed and approved for lifting cables from diameter 22mm to 42 mm.
It is operated from inside the diving bell using a spanner or a dedicated wheel.

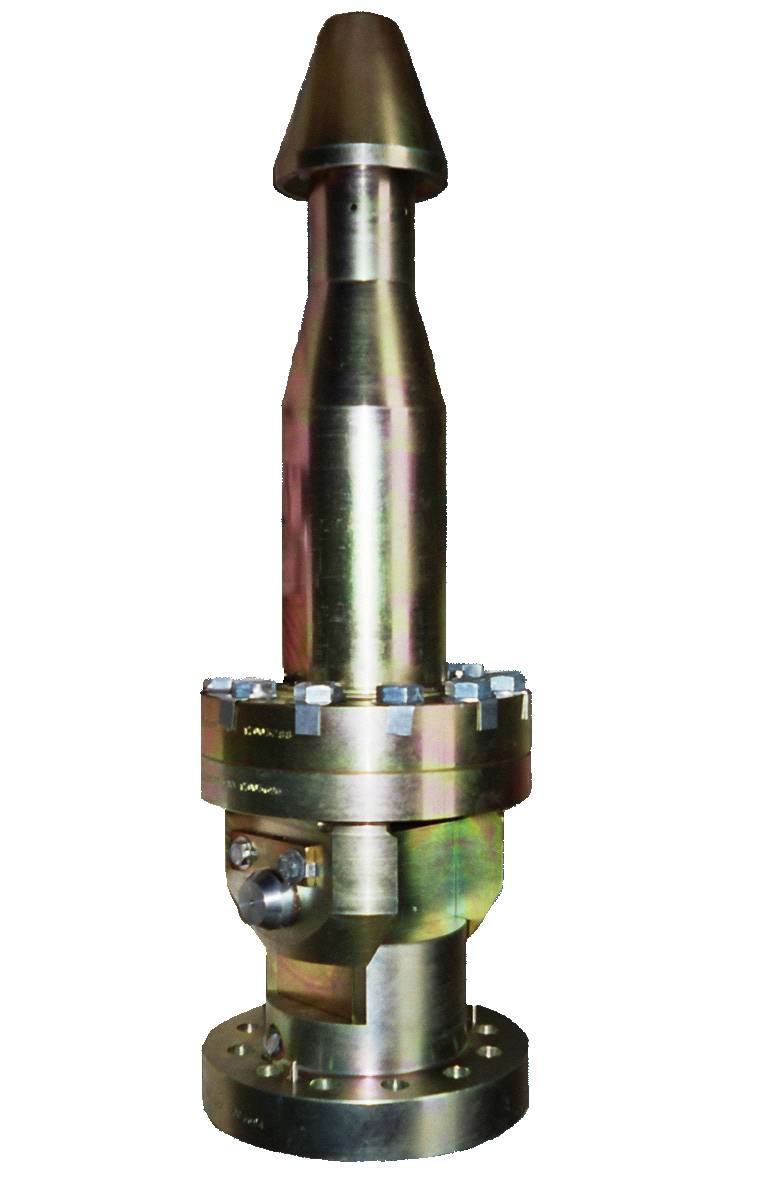

The standard socket features a hooking piece (A) with an overall length of 532 mm and a hole for a cable diameter 36 mm.
Depending on the vessel, the length can be different as well as the cable size.
Depending on the vessel, the length can be different as well as the cable size.
When ordering, the following information shall be indicated:
• Name of the vessel
• Design load of diving system
• Lifting wire diameter
• Length of hooking piece
Contact-us
|

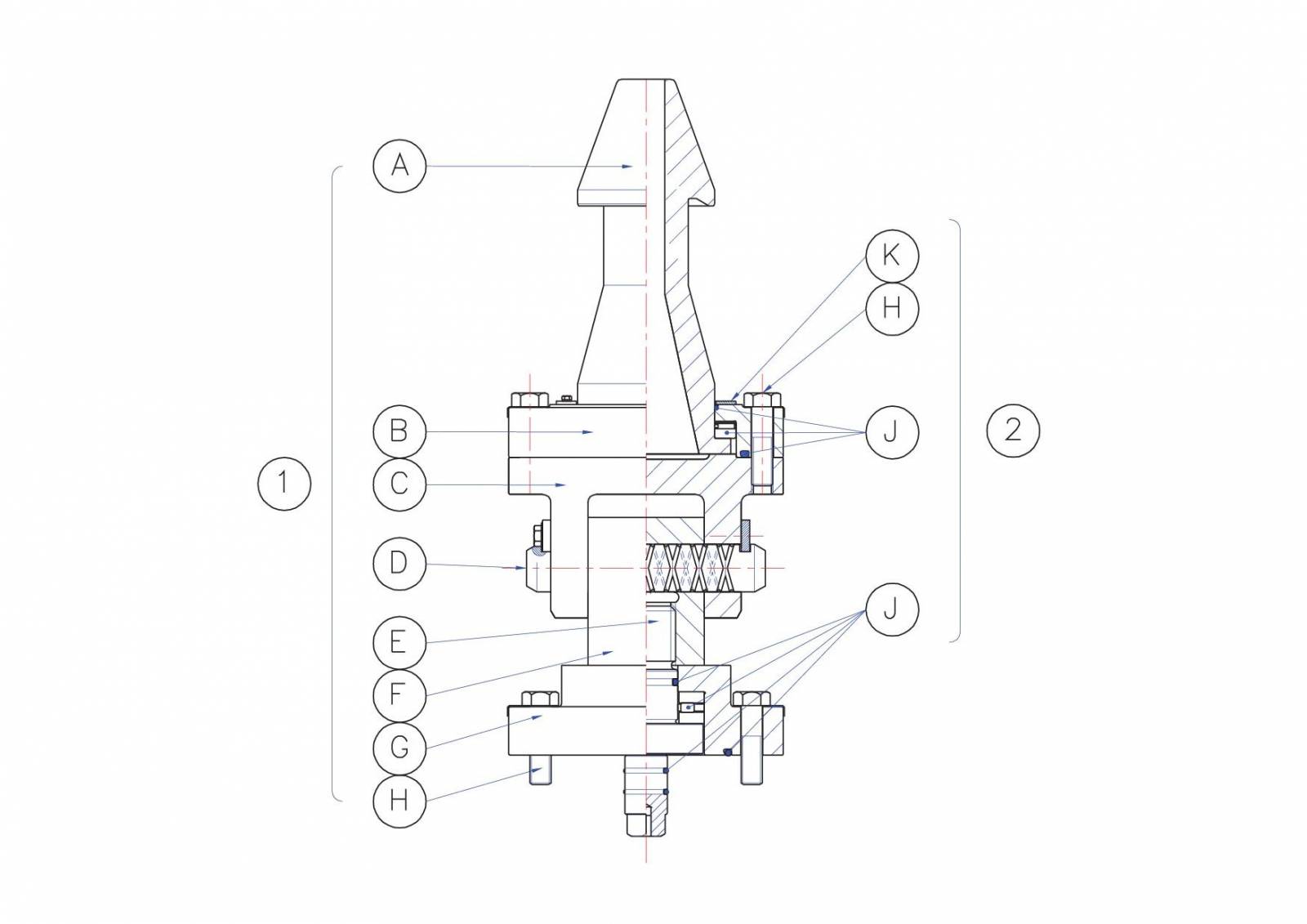

DESIGNATION |
COMANEX REF. |
|
Standard releasable socket Ø 30 / 32 |
170 01623 |
|
Standard releasable socket Ø 36 |
170 01527 |
|
Standard repair kit (J) |
141 02875 |
|
Standard hooking piece - length 532 - cable Ø 36 (A) |
170 01679 |
|
Standard upper fl ange (B) |
170 03288 |
|
Standard female fork (C) |
170 03696 |
|
Standard shaft (D) |
170 00359 |
|
Standard loosening screw (E) |
170 00358 |
|
Standard loosening fork (F) |
170 00357 |
|
Standard lower fl ange (G) |
170 03694 |
|
Specific screw HM20 (H) |
260 00598 |
|
Standard fastening plate (K) |
170 02525 |
