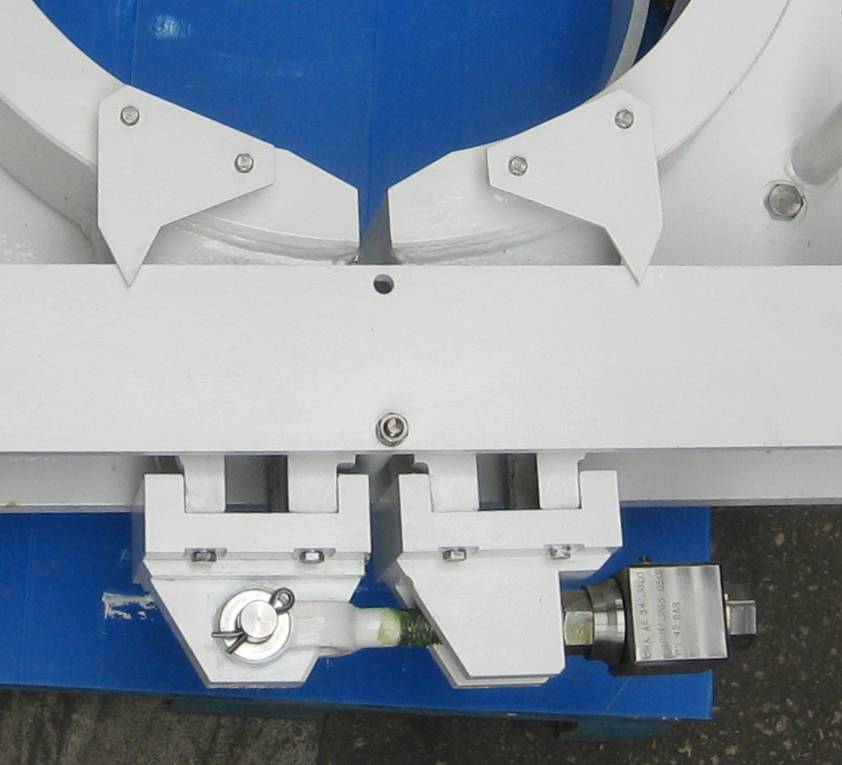

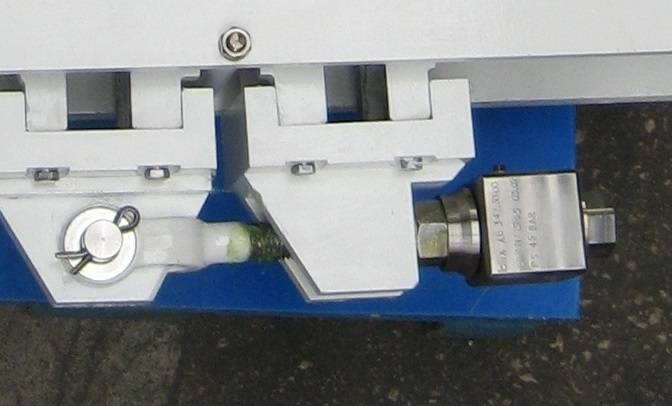

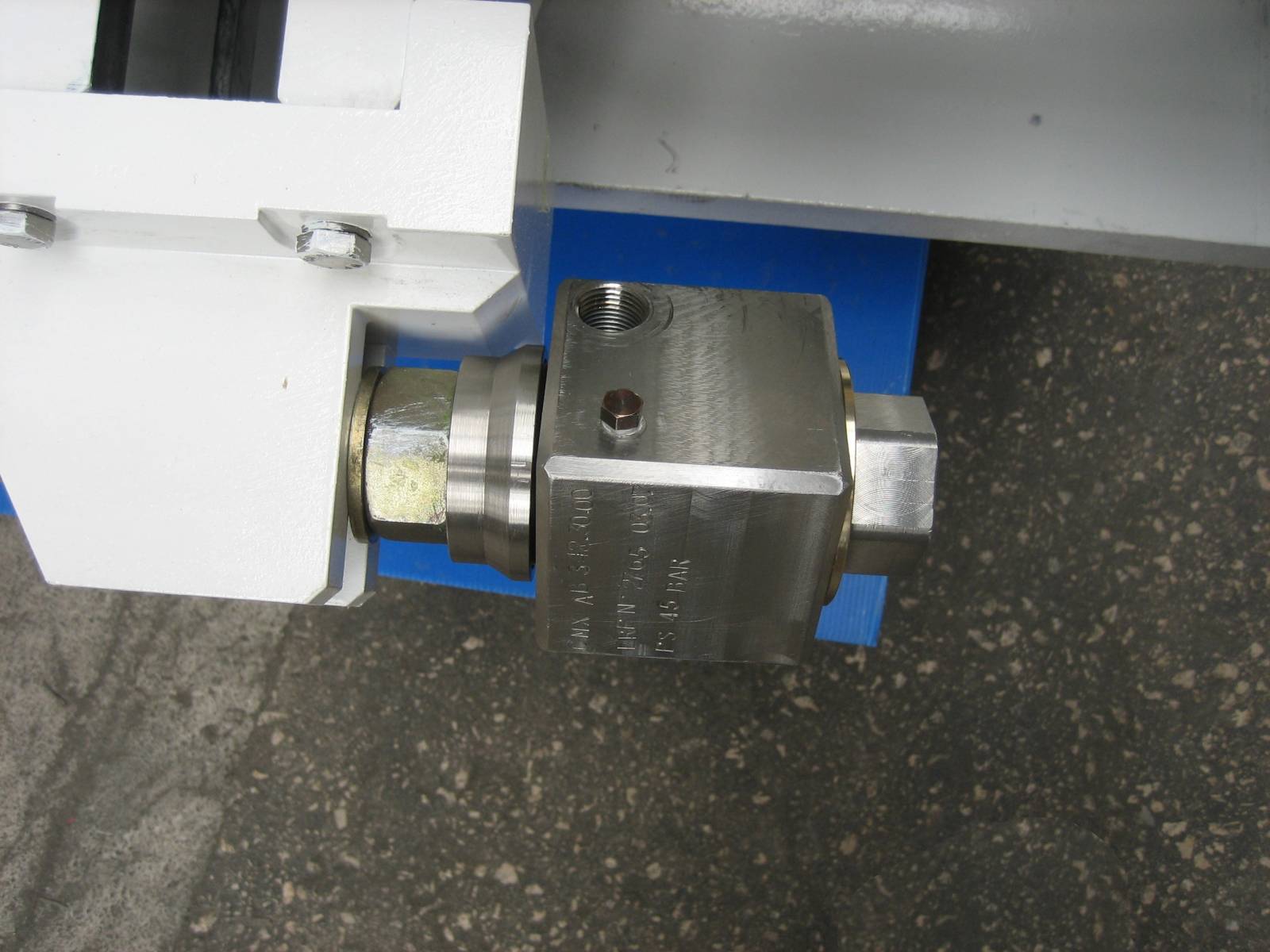

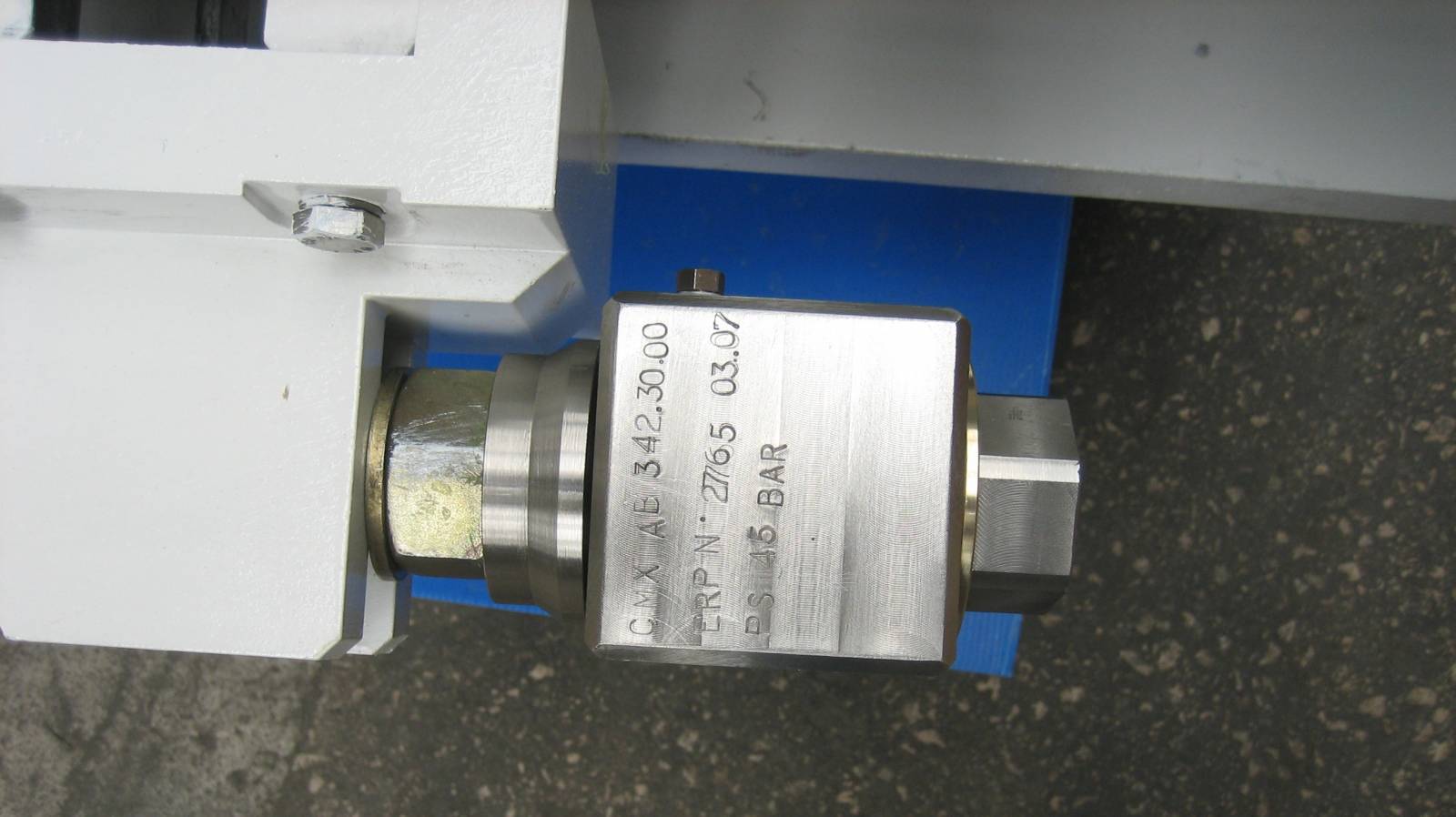

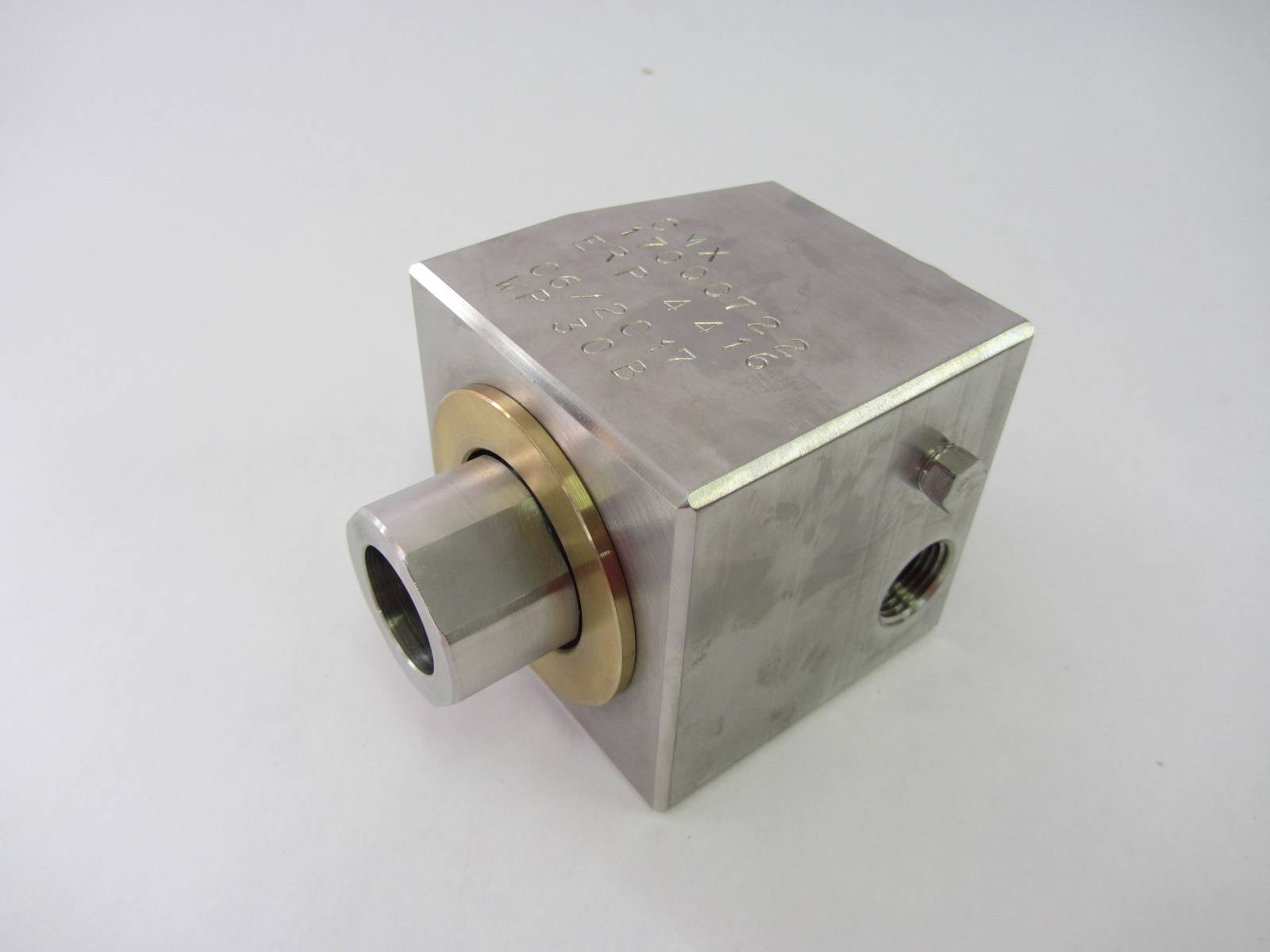

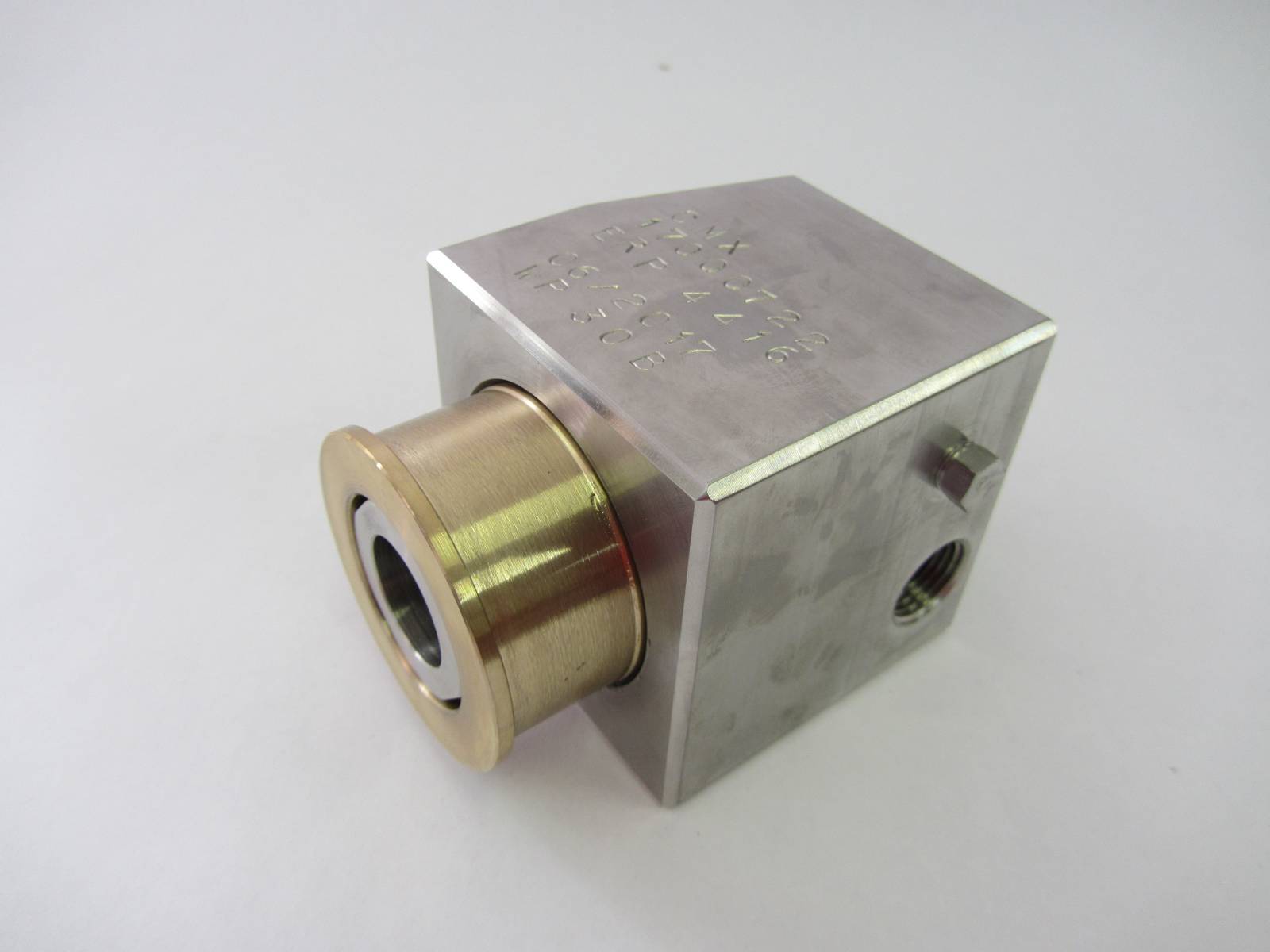

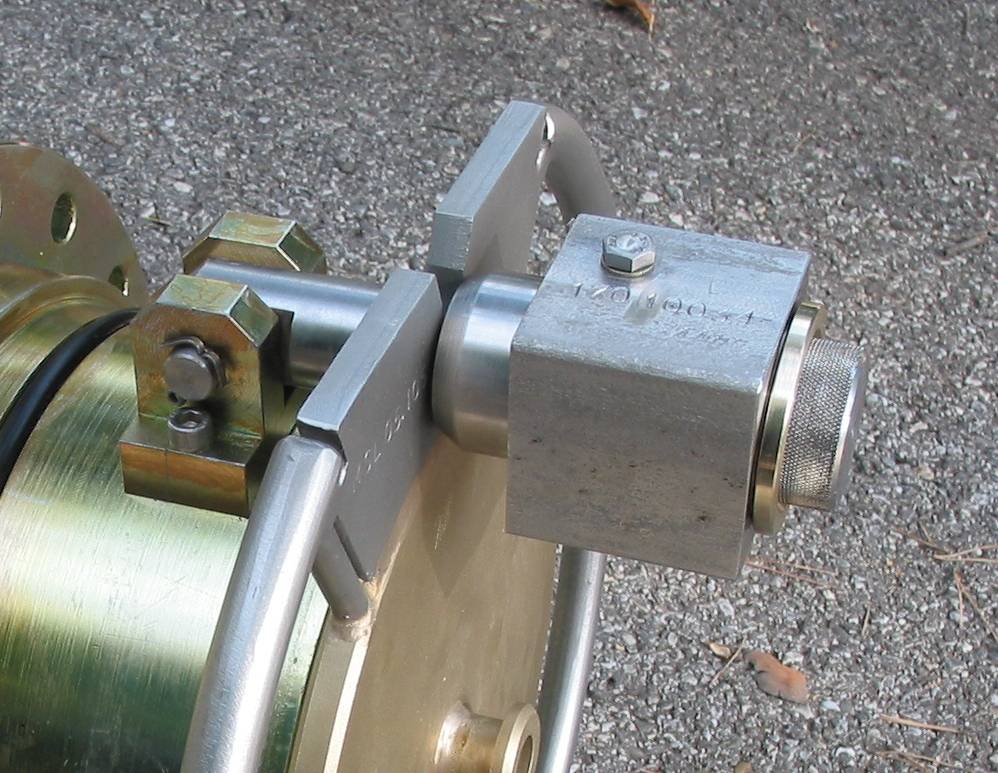

Active Interlock Device for Clamps
This equipment is specially designed:
• to prevent the opening of one clamp when the trunk is still under pressure,
• to prevent the pressurization of the trunk till the interlock is positioned and tight.
Working Pressure: up to 45 Bar
Contact-us
| DESIGNATION | COMANEX REF. |
| Active Interlock Device Ø M12 | 170 10034 |
| Active Interlock Device Ø M16 | 170 09213 |
| Active Interlock Device Ø M22 | 170 00722 |
| Active Interlock Device Ø M30 | 170 01352 |
| Active Interlock Device Ø M36 | 170 04518 |
| Active Interlock Device Ø M39 | 170 05661 |
Any other possibility on request
Associated products
This equipment is specially designed for Equipment Locks and Medical Locks:
• to prevent the opening of one pressure vessel under pressure,
• to prevent the pressurization of one pressure vessel till the interlock is positioned and tight.
More details
We design and manufacture Mating Clamps for Bell/Chamber Trunks and Equipment Locks up to 45 bar. Clamps may be manually operated or assisted. Every clamps may be fitted with its dedicated Interlock Device to put the system in compliance with the regulations in force. The standard diameters are...
