63 Bar Monobloc Ball Valve
Click on the images to enlarge them

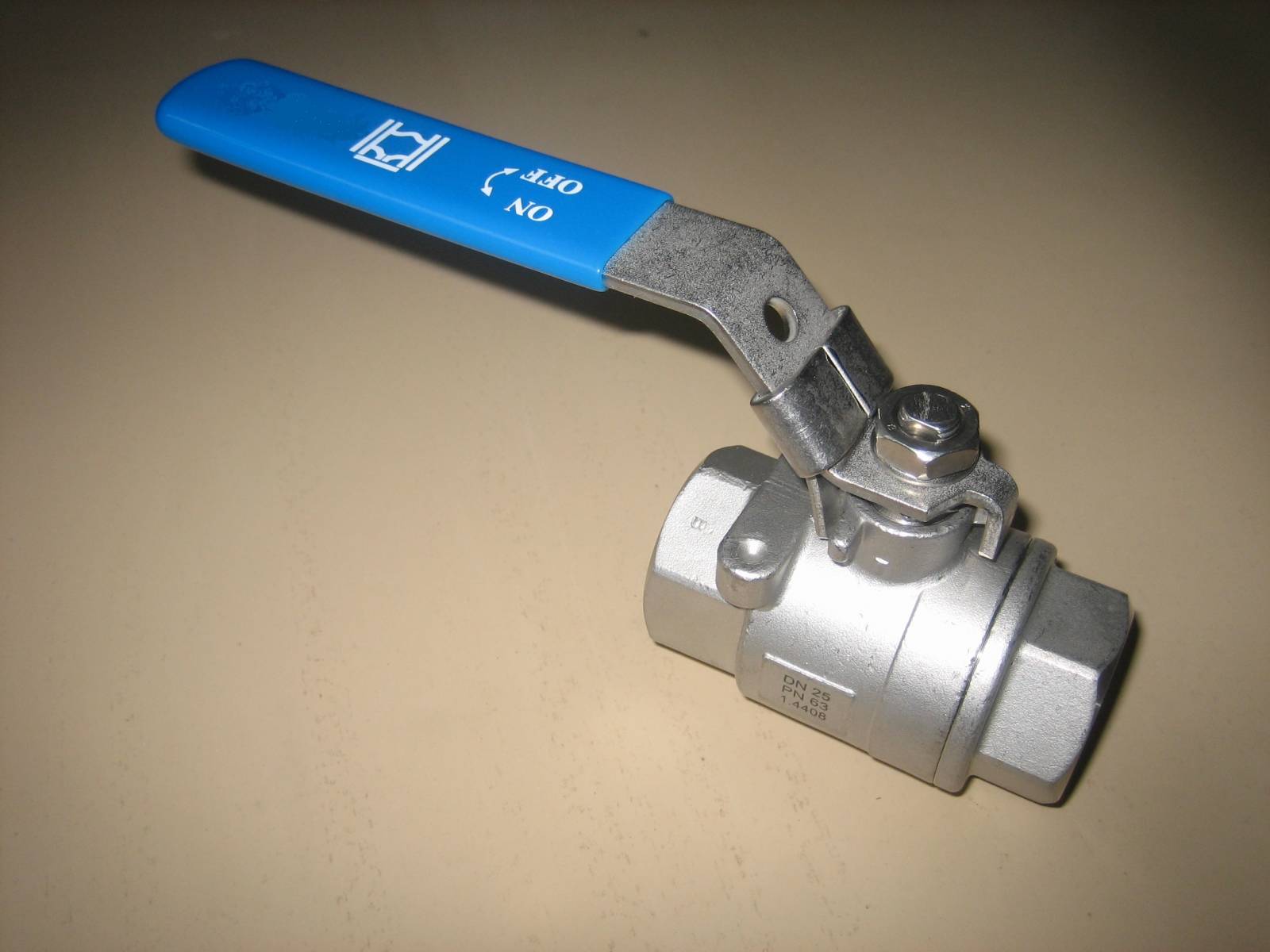

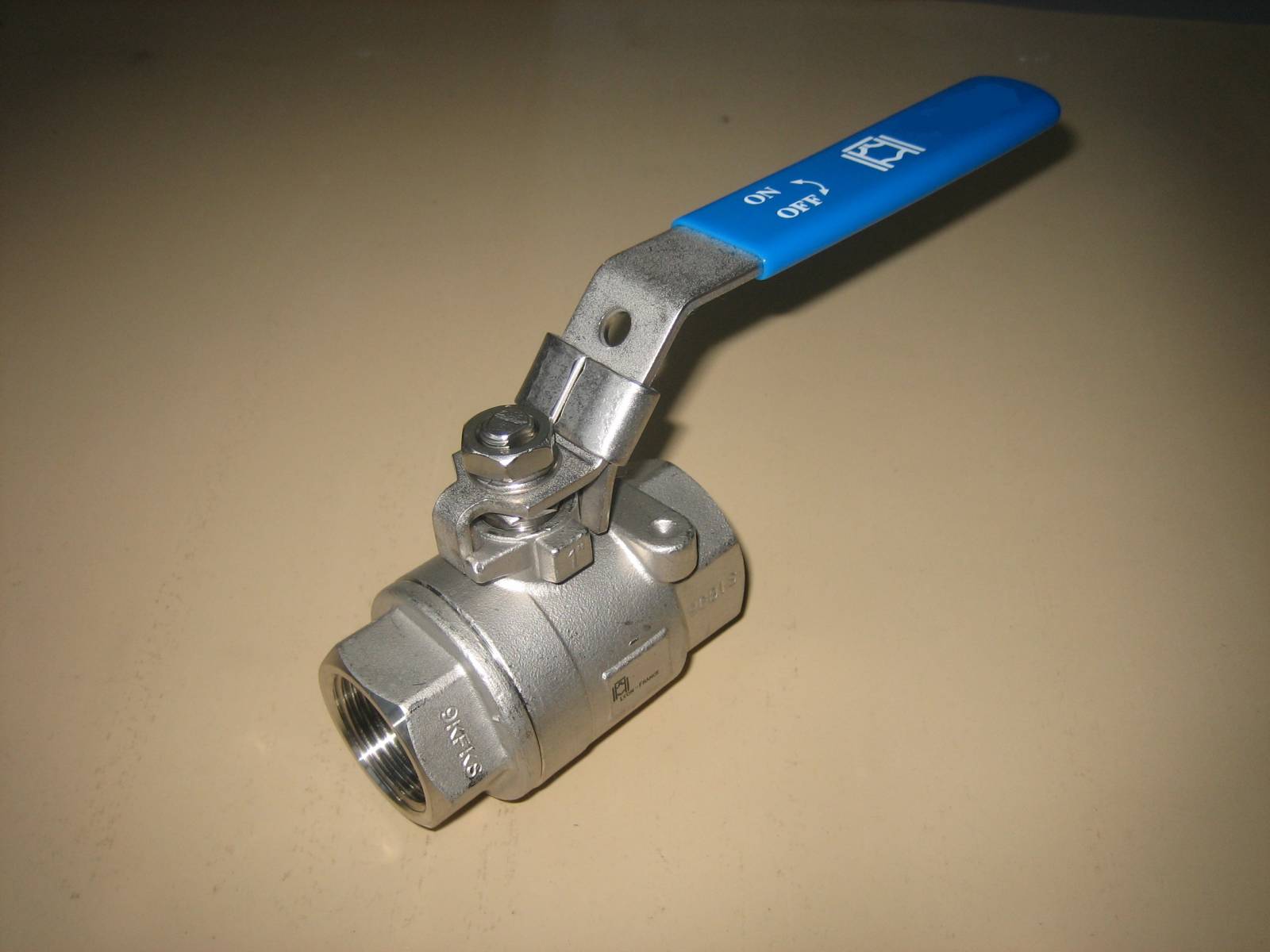

63 Bar Monobloc Ball Valve
Ball valve, monobloc design
Full bore atex Ex II 3 GD
Locking device handle
Body & ball: stainless steel 316L
Seats: RPTFE
• No seal kit
• Economical serie
Full bore atex Ex II 3 GD
Locking device handle
Body & ball: stainless steel 316L
Seats: RPTFE
• No seal kit
• Economical serie
Contact-us
|
DESIGNATION |
COMANEX REF. |
|
63 bar 1/4” NPT Monobloc ball valve |
190 10144 |
|
63 bar 3/8” NPT Monobloc ball valve |
190 10146 |
|
63 bar 1/2” NPT Monobloc ball valve |
190 10147 |
|
63 bar 3/4” NPT Monobloc ball valve |
190 10148 |
|
63 bar 1” NPT Monobloc ball valve |
190 10149 |
